Our Bullseye Level Range - Glass Circular Levels

Bullseye Level

We specialise in the volume production of low cost, high quality precision glass circular vials & bullseye levels. These vials have an anodised aluminium body with a precision ground glass lens. These are available in a wide range of standard sizes and sensitivities. We also manufacture custom sizes on request to suit a particular application, or to match an existing specification. They are more expensive than the plastic circular vials but have the following advantages:

Applications and Features

  • Can be made in sensitivities from 5 to 90 arc minutes
  • Customised with a smaller minimum order quantity
  • Wide operating and storage temperature range
  • Improved bubble contrast and scratch resistant lens
  • Extremely smooth and repeatable bubble movement.
  • Centring circle printed on inside surface of the glass
  • Metal body can incorporate mounting or adjustment
  • Transparent types for backlighting or underside reading

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Diameter
(mm)
Height
(mm)
Sensitivity Sensitivity
Unit
Backing Colour Liquid Colour Price
£ (ex VAT)
5757/3 5757/3 - Bullseye Level
14 5.6 420 7 minutes per 2 mm Transparent Clear See details
6039/1 6039/1 - Bullseye Level 15 5.6 1200 20 minutes per 2mm Silver Clear See details
5702/1 5702/1 - Bullseye Level
50.8 11.1 18000 5 degrees per division Transparent Clear See details

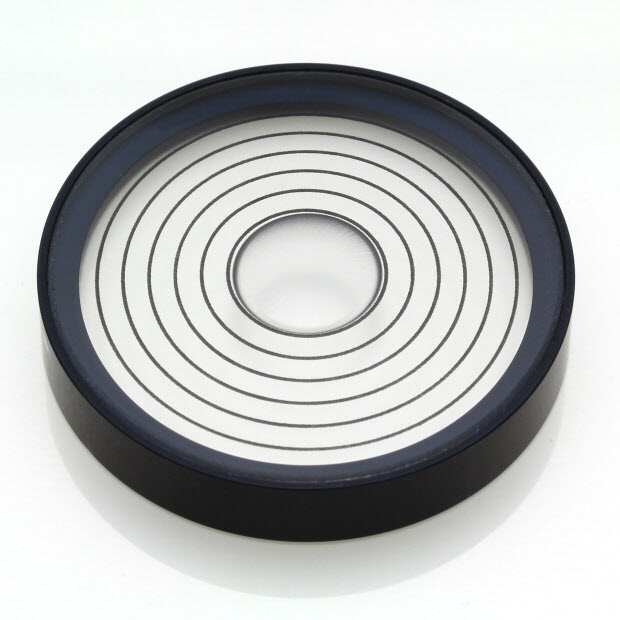

5673/1 5673/1 - Bullseye Level
50.8 10.1 3600 1 degree per 2.5mm division Transparent Clear See details

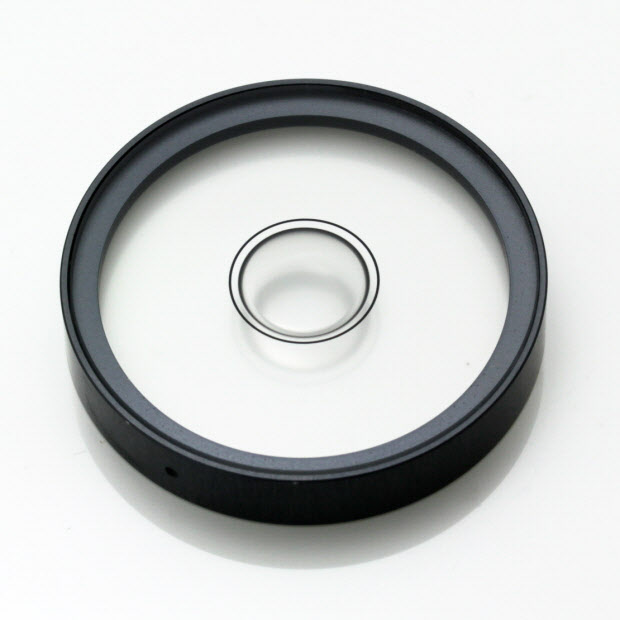

5563/1 5563/1 - Bullseye Level 50.8 9.1 480 8 minutes per 2mm Transparent Clear See details
5671/1 5671/1 - Bullseye Level
39.5 8.6 3600 1 degree per division Transparent Clear See details
5823/1 5823/1 - Bullseye Level
35 7.5 600 10 minutes per 2mm White Clear See details

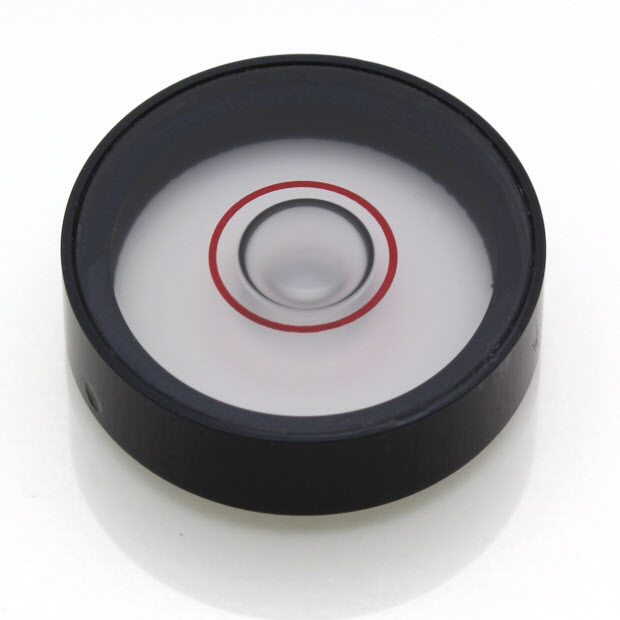

5805/1 5805/1 - Bullseye Level
20 6.5 720 12 minutes per 2mm Silver Clear See details

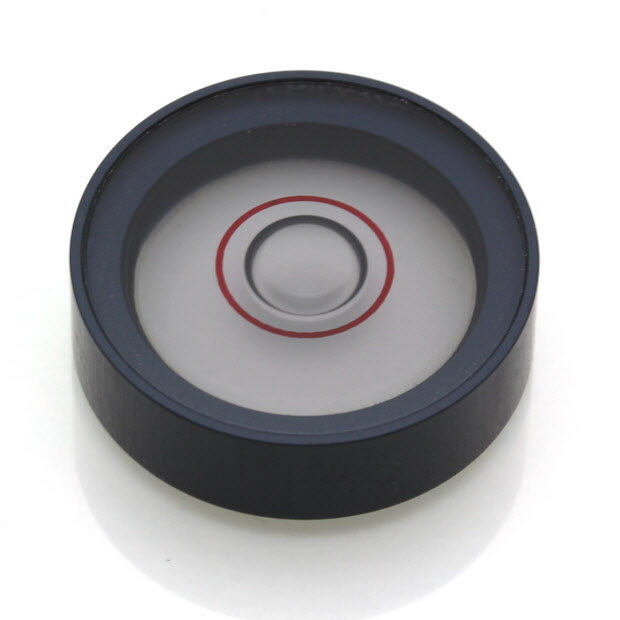

5809/1 5809/1 - Bullseye Level
18 6 720 12 minutes per 2mm Silver Clear See details

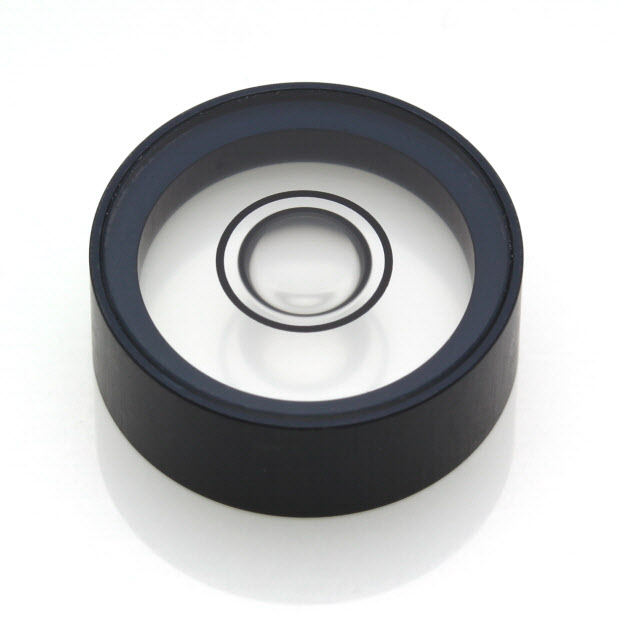

5571/2 5571/2 - Bullseye Level
18 6.4 2100 35 minutes per 2mm Transparent Clear See details
5571/1 5571/1 - Bullseye Level
18 6.4 600 10 minutes per 2mm Transparent Clear See details

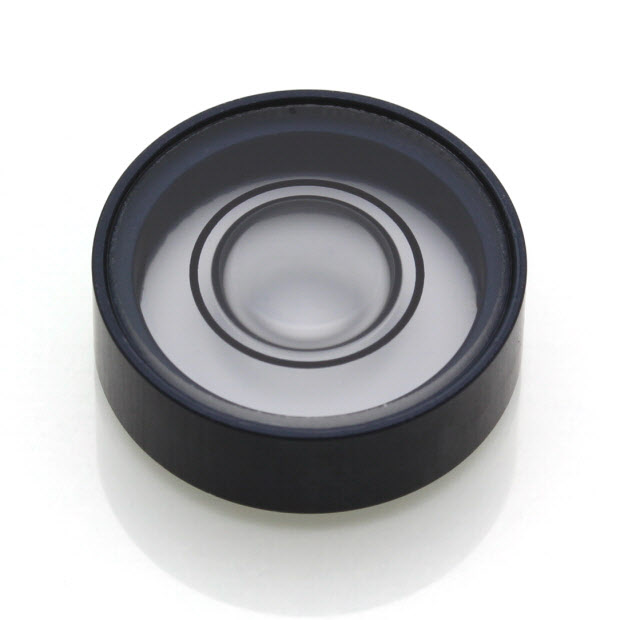

5611/1 5611/1 - Bullseye Level
15.5 5.7 960 16 minutes per 2mm White Clear See details
5590/2 5590/2 - Bullseye Level
15.5 5.7 960 16 minutes per 2mm Silver Clear See details
5590/1 5590/1 - Bullseye Level
15.5 5.7 2100 35 minutes per 2mm Silver Clear See details
5586/2 5586/2 - Bullseye Level
15.5 5.8 960 16 minutes per 2mm Transparent Clear See details

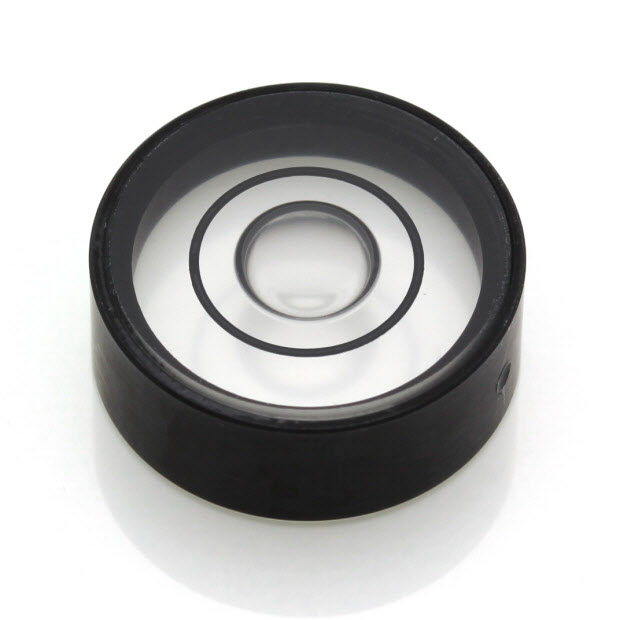

5586/1 5586/1 - Bullseye Level
15.5 5.8 2100 35 minutes per 2mm Transparent Clear See details

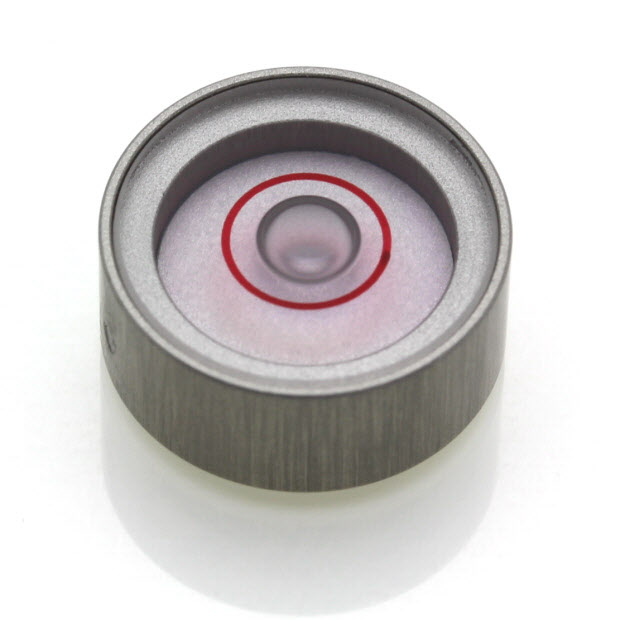

5732/1 5732/1 - Bullseye Level
15 7 412 6.88 minutes per 2mm Silver Clear See details
5661/1 5661/1 - Bullseye Level
15 5.6 420 7 minutes per 2mm Silver Clear See details

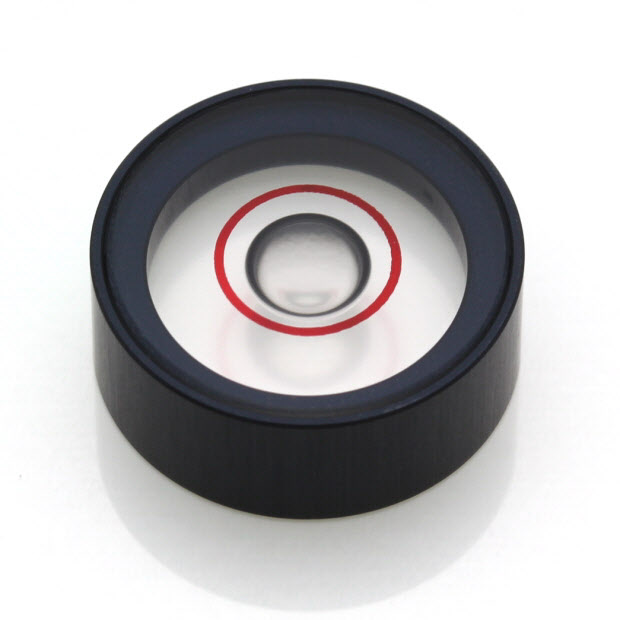

5634/1 5634/1 - Bullseye Level
15 5.6 1200 20 minutes per 2mm Transparent Clear See details
5609/1 5609/1 - Bullseye Level
15 5.6 1200 20 minutes per 2mm Silver Clear See details

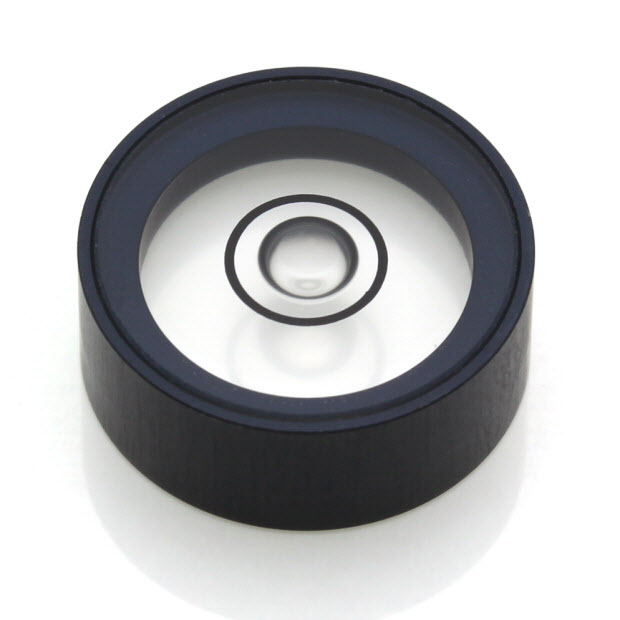

5581/1 5581/1 - Bullseye Level
15 5.6 1200 20 minutes per 2mm Transparent Clear See details

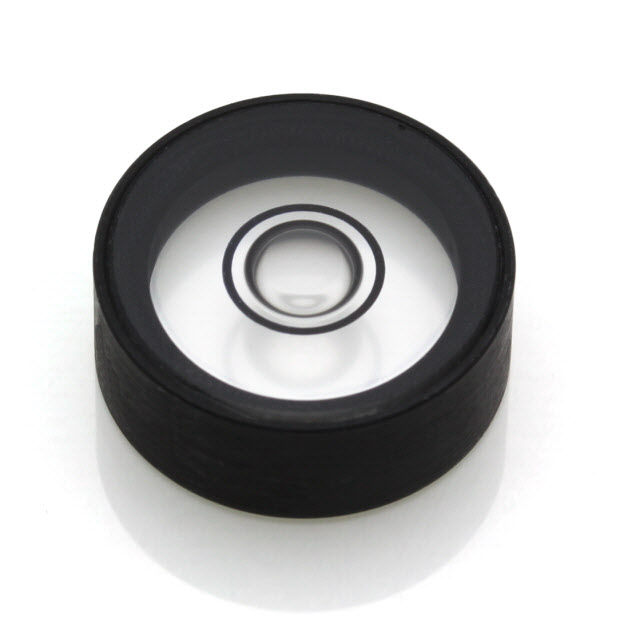

5580/1 5580/1 - Bullseye Level
15 5.6 420 7 minutes per 2mm Transparent Clear See details

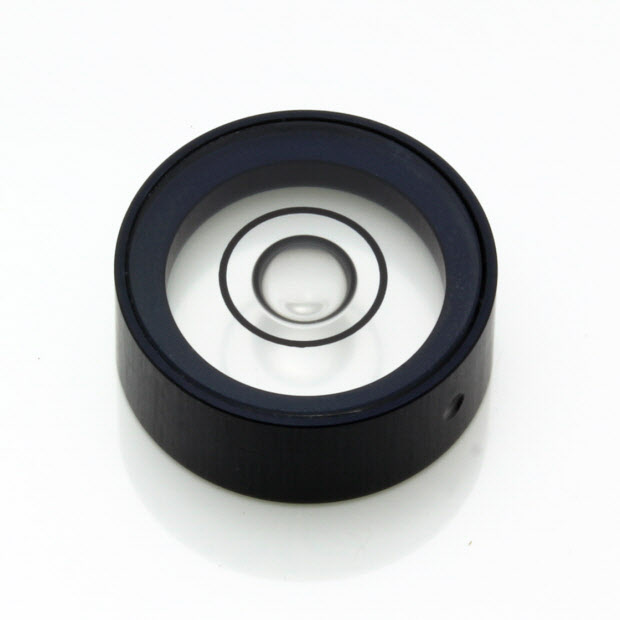

5564/1 5564/1 - Bullseye Level
15 5.6 1320 22 minutes per 2mm Transparent Clear See details
5757/1 5757/1 - Bullseye Level
14 5.6 1620 27 minutes per 2mm Transparent Clear See details
5802/1 5802/1 - Bullseye Level
12 5 1500 25 minutes per 2mm White Clear See details

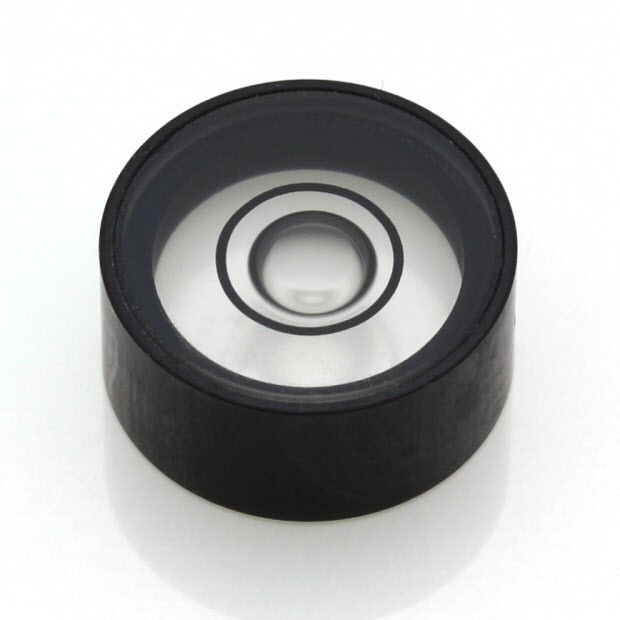

5801/2 5801/2 - Bullseye Level
12 5.4 3000 50 minutes per 2mm Transparent Clear See details

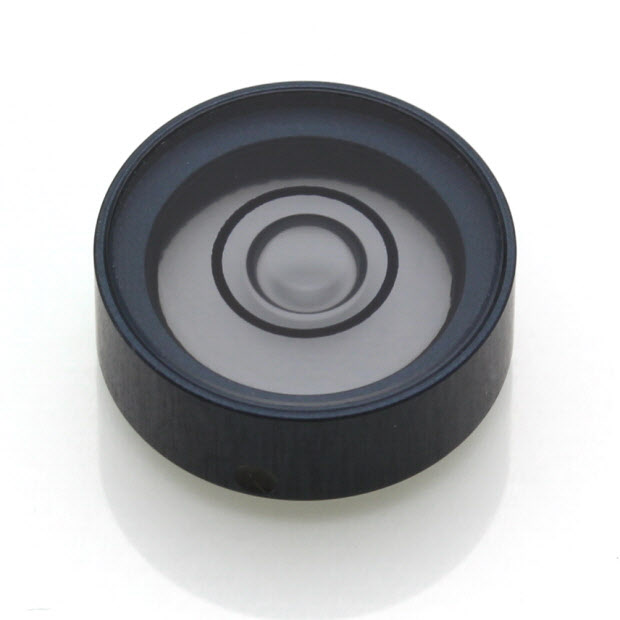

5801/1 5801/1 - Bullseye Level
12 5 3000 50 minutes per 2mm White Clear See details

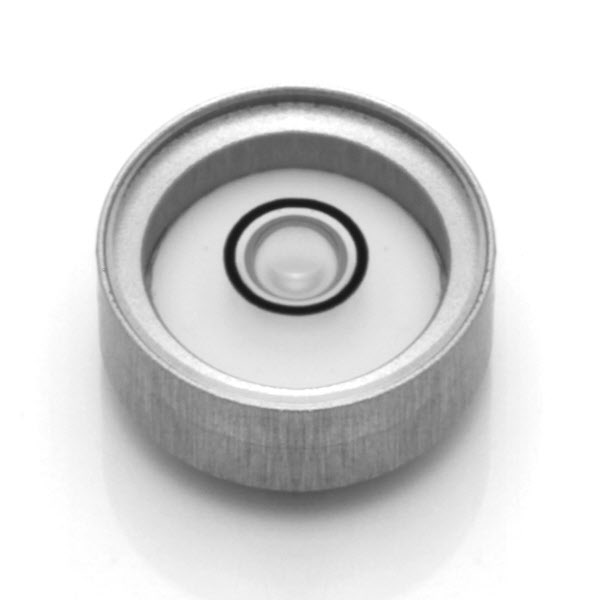

5807/1 5807/1 - Bullseye Level
11 5 520 8.7 minutes per 2mm White Clear See details
5806/1 5806/1 - Bullseye Level
11 5 2340 39 minutes per 2mm White Clear See details
5818/1 5818/1 - Bullseye Level
30 7.5 720 12 minutes per 2mm White Clear See details
5627/1 5627/1 - Bullseye Level
39.5 8.6 82.4 1 degree per division Transparent Clear See details
