Circular Levels » Glass Circular Vials » 5571/2 - Circular vial, Ø18mm, transparent, 35'/2mm

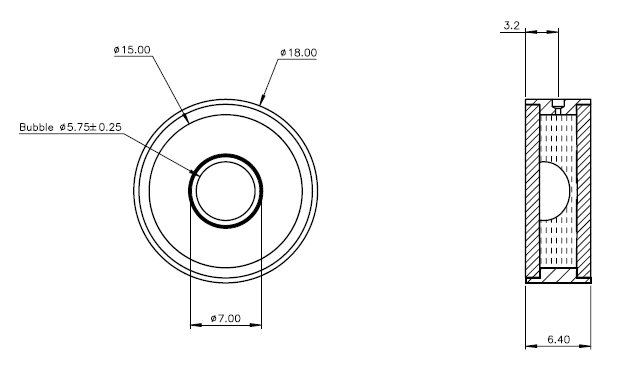

Product Drawing (pdf 60 KB) 5571/2 – Circular vial, Ø18mm, transparent, 35’/2mm

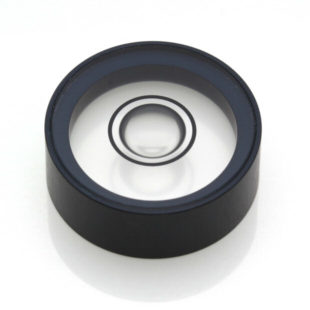

5571/2 – Circular vial, Ø18mm, transparent, 35’/2mm
1

Features

  • Sensitivity 35' per 2mm bubble movement
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Transparent
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 18 mm
Height 6.4 mm
Sensitivity 35 minutes per 2mm
Backing Colour Transparent -
Bubble Size 5.75 mm
Ring Diameter 7 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 18 mm
Height 6.4 mm
Weight 3.12 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
