Circular Levels » Glass Circular Vials » 5580/1 - Circular vial, Ø15mm, transparent, 7'/2mm

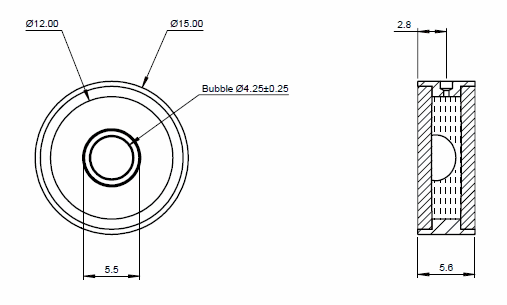

Product Drawing (pdf 75 KB) 5580/1 – Circular vial, Ø15mm, transparent, 7’/2mm

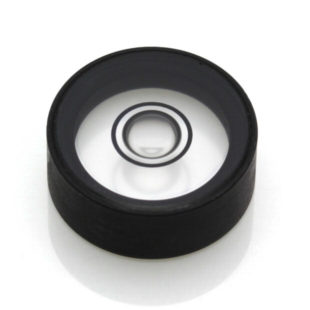

5580/1 – Circular vial, Ø15mm, transparent, 7’/2mm
1

Features

  • Sensitivity 7' per 2mm bubble movement
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Transparent
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 15 mm
Height 5.6 mm
Sensitivity 7 minutes per 2mm
Backing Colour Transparent -
Bubble Size 4.25 mm
Ring Diameter 5.5 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 15 mm
Height 5.6 mm
Weight 2.05 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
