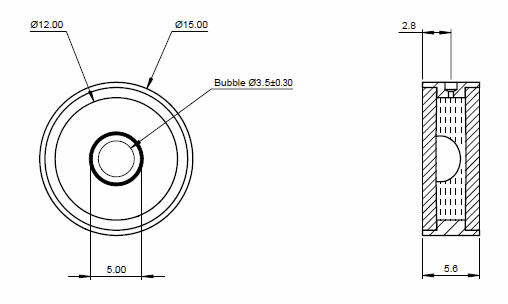

Product Drawing (pdf 74 KB) 5581/1 – Circular vial, Ø15mm, transparent, 20’/2mm

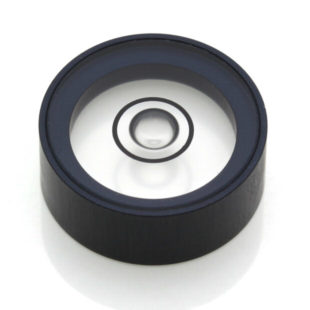

5581/1 – Circular vial, Ø15mm, transparent, 20’/2mm
1

Features

  • Sensitivity 20' per 2mm bubble movement
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Transparent
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 15 mm
Height 5.6 mm
Sensitivity 20 minutes per 2mm
Backing Colour Transparent -
Bubble Size 3.5 mm
Ring Diameter 5 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 15 mm
Height 5.6 mm
Weight 2.08 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
