Circular Levels » Glass Circular Vials » 5702/1 - Circular vial, Ø50.8, transparent, range 0-10deg

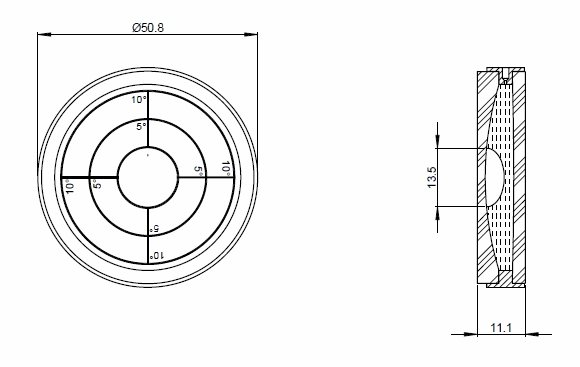

Product Drawing (pdf 94 KB) 5702/1 – Circular vial, Ø50.8, transparent, range 0-10deg

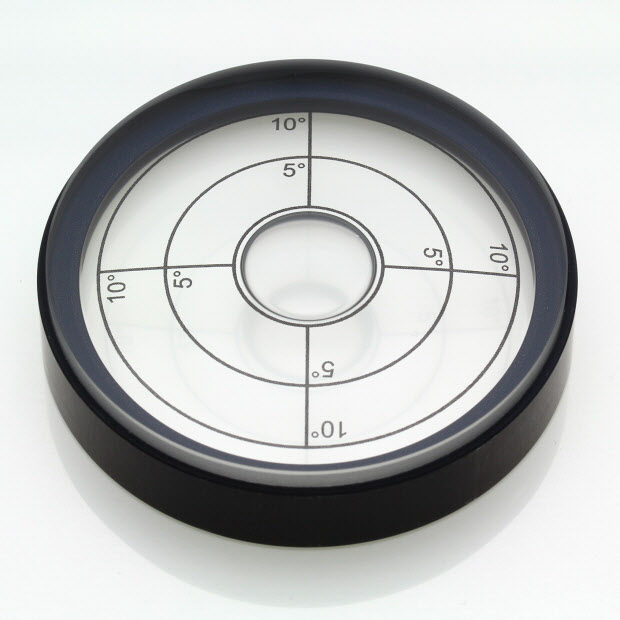

5702/1 – Circular vial, Ø50.8, transparent, range 0-10deg
1

Features

  • Sensitivity 0-10 degrees (±5° per division)
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Transparent
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 50.8 mm
Height 11.1 mm
Sensitivity 5 degrees per division
Backing Colour Transparent -
Bubble Size 13.5 mm
Ring Diameter 14 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 50.8 mm
Height 11.1 mm
Weight 44.31 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
