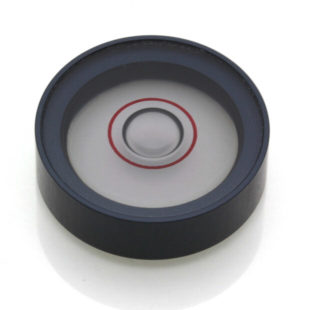

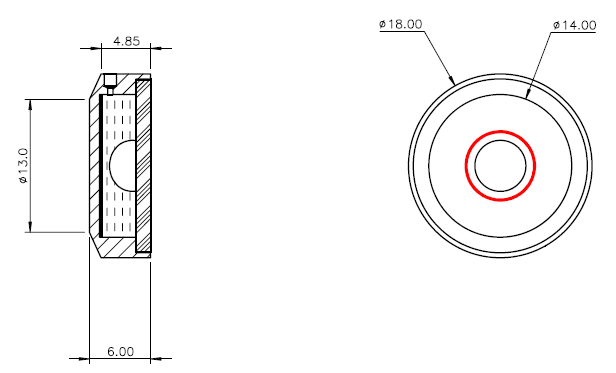

Product Drawing (pdf 59 KB) 5809/1 – Circular vial, Ø18mm, White back, 10’/2mm
Features
- Sensitivity 10' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- White Backing
- Wide operational temperature range
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 18 | mm |
Height | 6 | mm |
Sensitivity | 10 | minutes per 2mm |
Backing Colour | White | - |
Bubble Size | 5 | mm |
Ring Diameter | 7 | mm |
Ring Colour | Red | - |
Finish | Black Anodised | - |
Liquid Colour | Clear | - |
Lens Material | Glass | - |
Dimension | Value | Unit |
---|---|---|
Diameter | 18 | mm |
Height | 6 | mm |
Weight | 2.72 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -30 to 70 | °C |
Certification | Download | |
---|---|---|
RoHS Certificate | Download Certificate | |
REACH Certificate | Download Certificate |
