Product Datasheet (pdf 2 MB) IDS – OLED Inclinometer Display System

The IDS is a high quality display system for use with many of our inclinometer sensors. It can communicate with all sensors that use the simplified Level Developments command set, such as the SOLAR-2 series, the VS series, the HPS series and the LCH series.

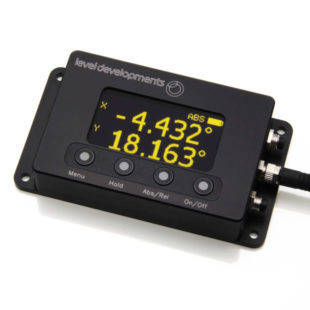

IDS – OLED Inclinometer Display System

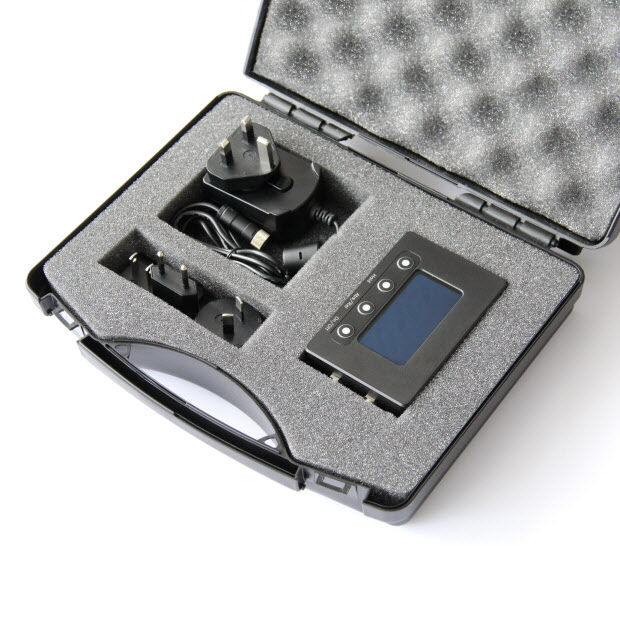

IDS – OLED Inclinometer Display System

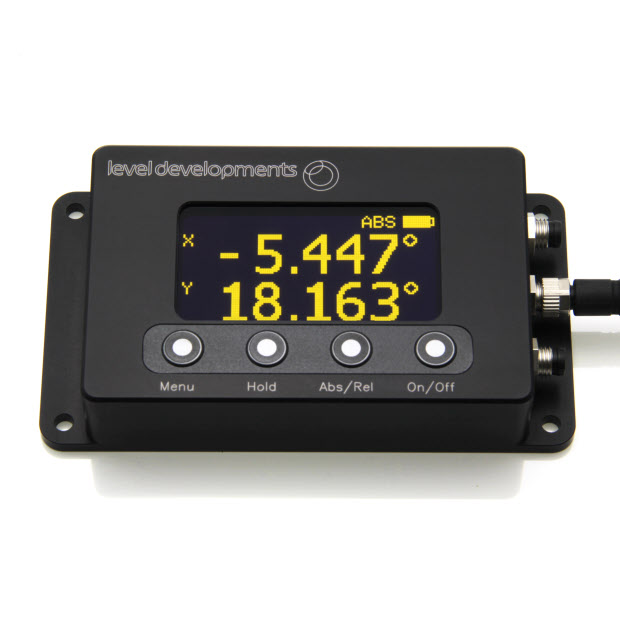

IDS – OLED Inclinometer Display System
123

Features

  • OLED Graphical Display. High contrast with wide viewing angle.
  • Operating temperature -20 to +70°C (-40 to +85°C without Li-Ion battery)
  • Single, dual axis or graphical display mode
  • Programmable alarm function (relay output)
  • Built in Li-Ion rechargeable battery (30 hours continuous use)
  • Display resolution 0.001° (adjustable to 1, 2 or 3 decimal places)
  • Sturdy aluminium Housing, sealed to IP67 with IP67 locking connectors

Product Specification

Parameter Value Unit
Number of Axis 2 -
Display Type OLED -
Display Output RS232 -
Power Source Internal Li-Po Battery, or external -
Frequency Response Adjustable Hz
Parameter Value Unit
Supply Voltage (min) 9 V
Supply Voltage (max) 30 V
Battery Life 30 Hours
Dimension Value Unit
Weight 380 g
Sensor Size - mm

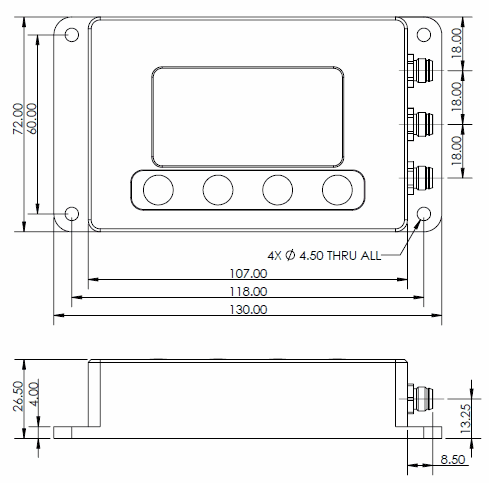

Display Size 130x72x26.5 mm
Display Weight 380 g
Display Case Material Anodised Aluminium -
Parameter Value Unit
Operational Temperature Range -40 to 85 (without Li-Po Battery) °C
Storage Temperature Range -40 to 85 (without Li-Po Battery) °C
Sensor Seal Rating - -
Display Seal Rating IP67 -
