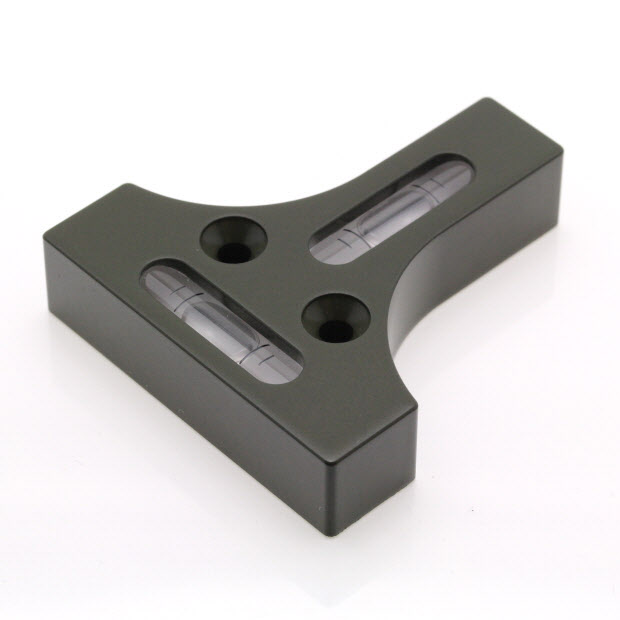

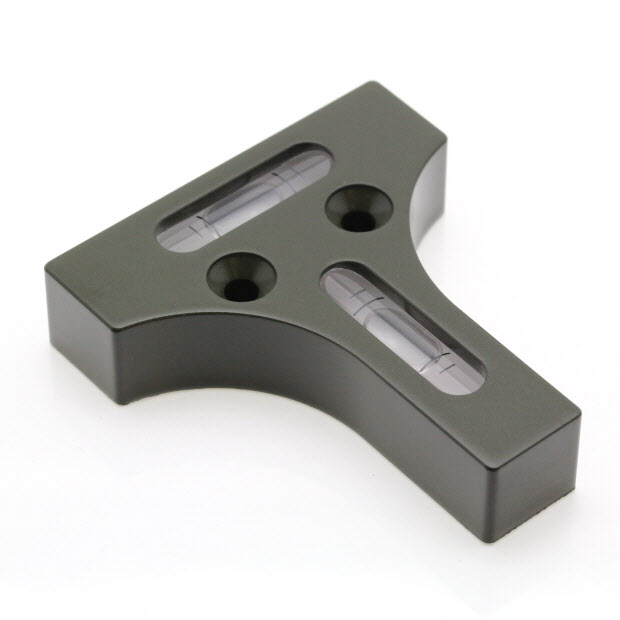

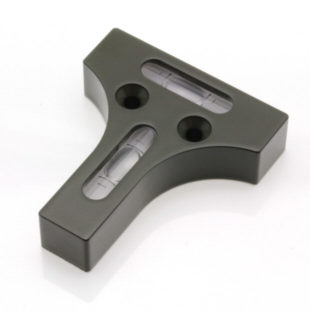

Instrument Levels » 2 Axis Levels » T20 - 2 Axis 'T' level, 57x51x13mm

Product Datasheet (pdf 85 kB) T20 – 2 Axis ‘T’ level, 57x51x13mm

Can be used free standing, or attached to an instrument.

Features

  • Machined Aluminium Housing
  • Sensitivity 4'/2mm division
  • Precision ground vials
  • High contrast viewing
  • Levelled with reference to precision base
  • NATO green paint finish
  • Can be used free standing, or attached to an instrument.

Applications

  • Platform levelling
  • Mortar and gun sight levelling
  • Workpiece levelling
  • Robotic hand zero position setting

Product Specification

Parameter Value Unit
Length 57.15 mm
Height 12.7 mm
Width 50.8 mm
Sensitivity Per Division 4 minutes
Division Size mm
Hole Centres 17.78 mm
Hole Diameter 4.1 mm
Magnetic No -
Case Material Aluminium -
Vial Material Glass -
Finish NATO Green -
Liquid Colour Clear -
Light none -

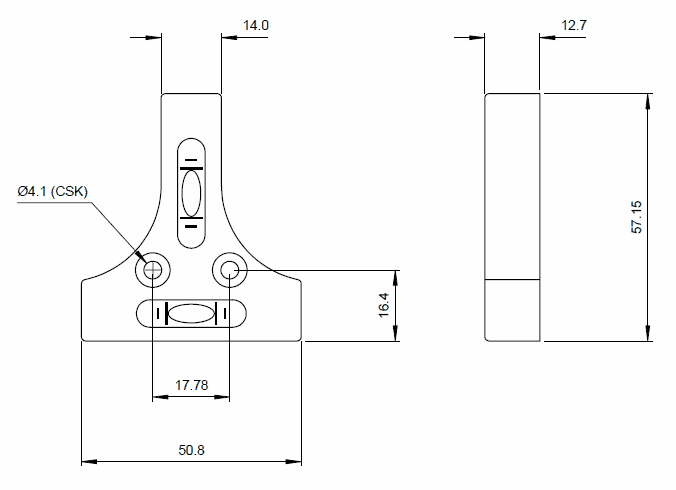

Dimension Value Unit
Length 57.15 mm
Width 50.8 mm
Height 12.7 mm
Weight 38 Grams
Parameter Value Unit
Operational Temperature Range -20 to 70 °C
Storage Temperature Range -40 to 75 °C
