Product Datasheet (pdf 60 kB) CIG15 – Circular level, Ø15×10, chrome finish, glass vial, 25’/2mm

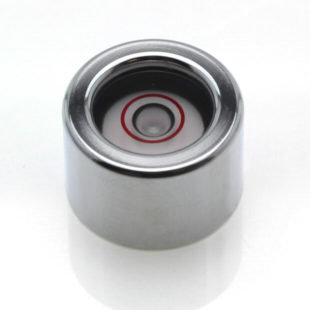

A small bore hole circular spirit level, set level with reference to the underside of the housing

Features

  • Precision glass circular vial
  • Sensitivity 25'/2mm bubble movement
  • Set level with reference to the underside of housing
  • Wide operating temperature range
  • High quality chrome finish

Applications

  • Weight scales and platforms
  • Surveying instruments and tribrachs
  • OEM tools

Product Specification

Parameter Value Unit
Diameter 15 mm
Sensitivity 25 minutes
Vial Material Glass -
Case Material Aluminium -
Finish Chrome -
Mounting Method Push fit, VHB tape, or bonded -
Bubble Size 3.5 mm
Ring Diameter 5.3 mm
Ring Colour Red -
Liquid Colour Clear -
Type of Backlighting none -

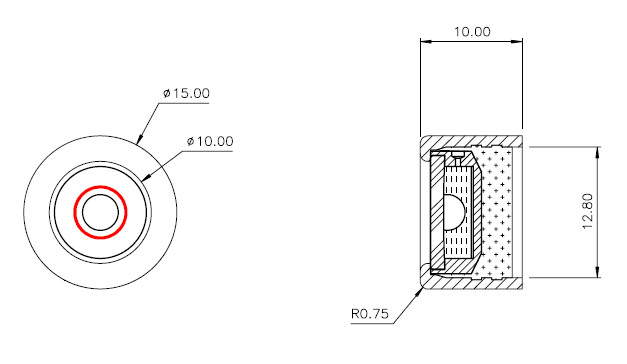

Dimension Value Unit
Overall Diameter 15 mm
Vial Window Diameter 10 mm
Overall Height 10 mm
Weight 3 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
