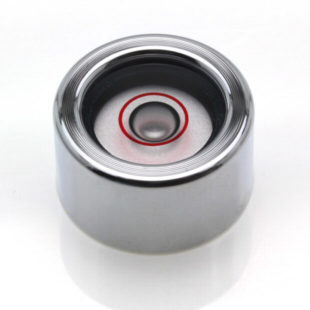

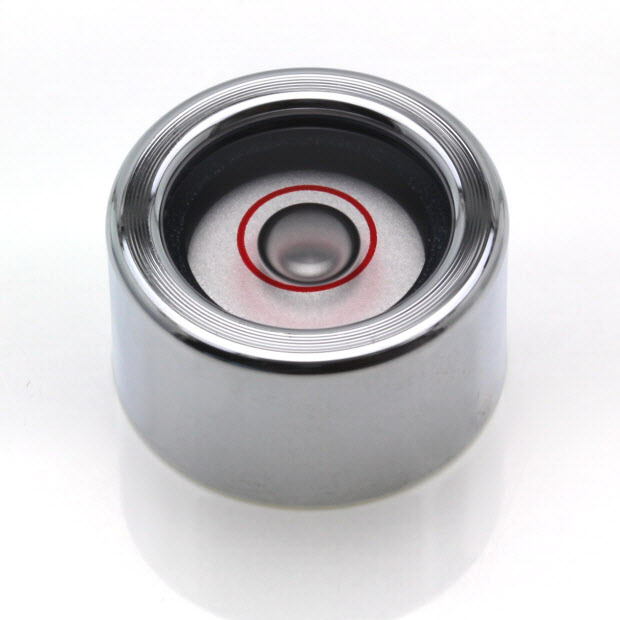

Product Datasheet (pdf 68 KB) CIG18 – Circular level, Ø18×10, chrome finish, glass vial, 20’/2mm
A small bore hole circular spirit level, set level with reference to the underside of the housing
Features
- Precision glass circular vial
- Sensitivity 20'/2mm bubble movement
- Set level with reference to the underside of housing
- Wide operating temperature range
- High quality chrome finish
Applications
- Weight scales and platforms
- Surveying instruments and tribrachs
- OEM tools
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 18 | mm |
| Sensitivity | 20 | minutes |
| Vial Material | Glass | - |
| Case Material | Aluminium | - |
| Finish | Chrome | - |
| Mounting Method | Push fit, VHB tape, or bonded | - |
| Bubble Size | 4.7 | mm |
| Ring Diameter | 6 | mm |
| Ring Colour | Red | - |
| Liquid Colour | Clear | - |
| Type of Backlighting | none | - |

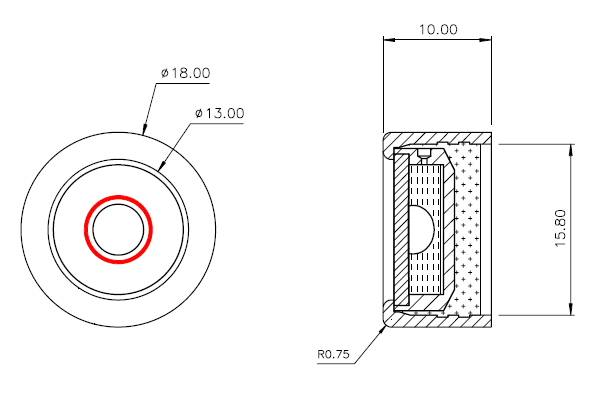

| Dimension | Value | Unit |
|---|---|---|
| Overall Diameter | 18 | mm |
| Vial Window Diameter | 13 | mm |
| Overall Height | 10 | mm |
| Weight | 4 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
