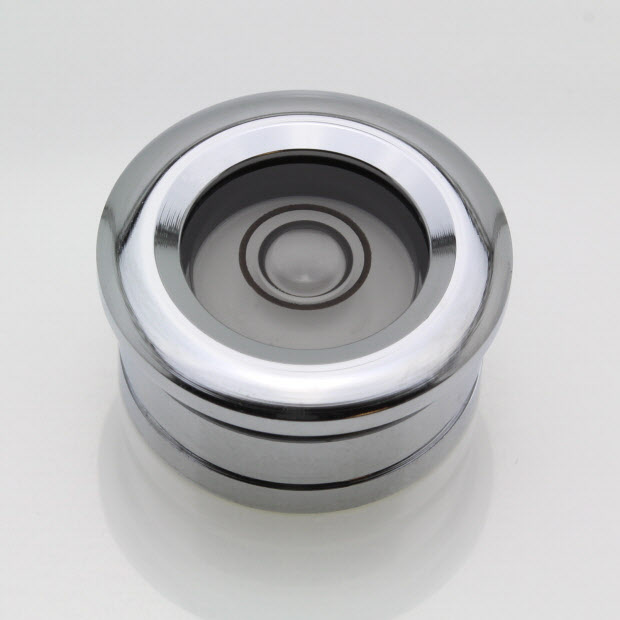

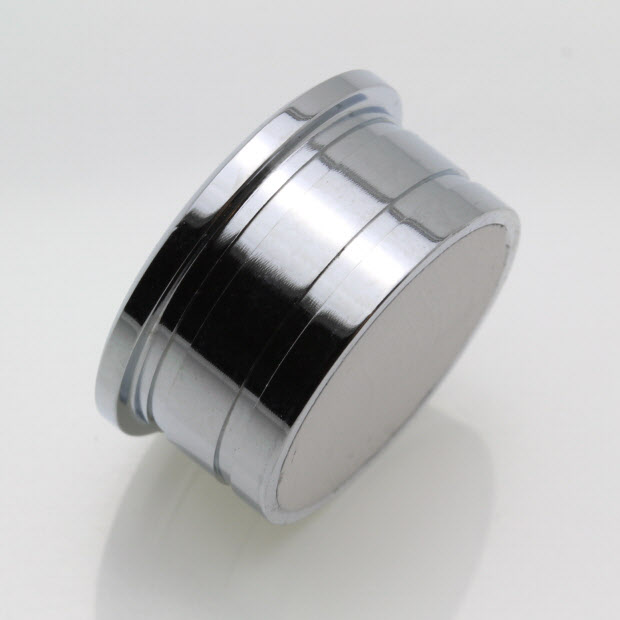

Product Drawing (pdf 101 KB) CF20 – Flush Mount Circular Level, Ø20mm, Chrome
Features
- Sensitivity 40' per 2mm bubble movement
- High quality plastic vial
- Chrome plated finish
- Set level with reference to the underside of the mounting flange.
Applications
- Tripod and camera mount levelling
- Mobile crane levellling
- High quality weighing scales and platforms
- Tribrach levellling
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 20 | mm |
| Sensitivity | 40 | minutes per 2mm |
| Vial Material | Acrylic (PMMA) | - |
| Case Material | Aluminium | - |
| Finish | Chrome plated | - |
| Mounting Method | Press fit or bonded | - |
| Bubble Size | 3.7 | mm |
| Ring Diameter | 6.1 | mm |
| Ring Colour | Black | - |
| Liquid Colour | Clear | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Flange Diameter | 20 | mm |
| Bore Diameter | 18 | mm |
| Overall Height | 10 | mm |
| Depth Below Flange | 8 | mm |
| Weight | 3.96 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 60 | °C |
| Storage Temperature Range | -25 to 65 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 1 - 4 | $9.92 | £9.44 |
| 5 - 9 | $8.92 | £8.50 |
| 10 - 24 | $8.03 | £7.64 |
| 25 - 49 | $7.24 | £6.90 |
| 50 - 99 | $6.53 | £6.22 |
| 100 - 249 | $5.87 | £5.59 |
| 250+ | POA | POA |
Quantity
Minimum order quantity:
1
7 available for immediate despatch. More available in 30 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: CF20)
