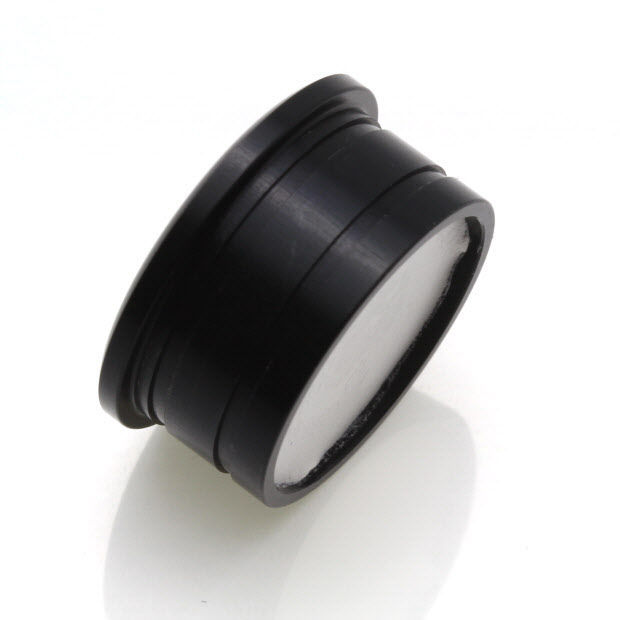

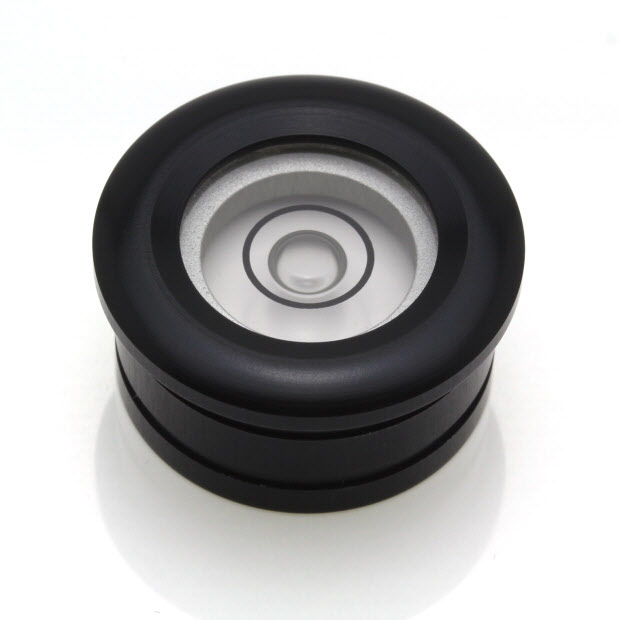

Circular Levels » Flush Mounted Circular Levels » CF20GB - Flush Mount Circular Level, Ø20mm, glass vial, black

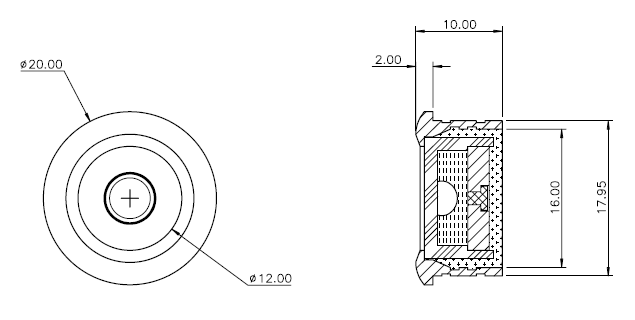

Product Drawing (pdf 96 kB) CF20GB – Flush Mount Circular Level, Ø20mm, glass vial, black

Features

  • Sensitivity 27' per 2mm bubble
  • High quality Glass Vial
  • Black Anodised finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 20 mm
Sensitivity 27 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Press fit or bonded -
Bubble Size 3.75 mm
Ring Diameter 6 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Flange Diameter 20 mm
Bore Diameter 18 mm
Overall Height 10 mm
Depth Below Flange 8 mm
Weight 3.96 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
