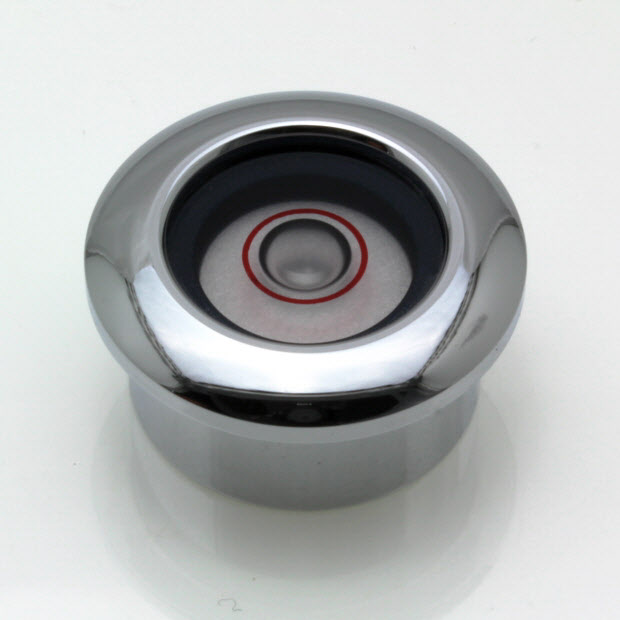

CF22/7 – Flush Mount Circular Level, Ø22mm, Chrome, Sens 7’/2mm
1

Features

  • Sensitivity 7' per 2mm bubble
  • High quality glass vial
  • Chrome plated finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 22 mm
Sensitivity 7 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Press fit or bonded -
Bubble Size 4.7 mm
Ring Diameter 6 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -

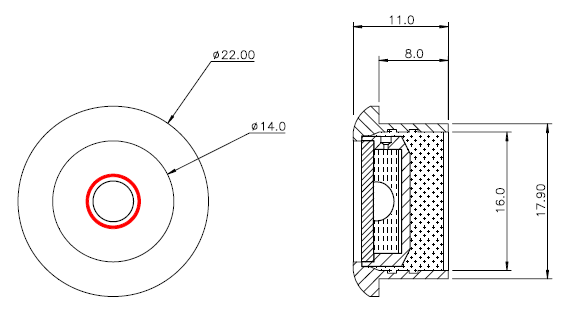

Dimension Value Unit
Flange Diameter 22 mm
Bore Diameter 17.9 mm
Overall Height 10 mm
Depth Below Flange 8 mm
Weight 6 Grams
Parameter Value Unit
Operational Temperature Range -20 to 60 °C
Storage Temperature Range -40 to 70 °C
