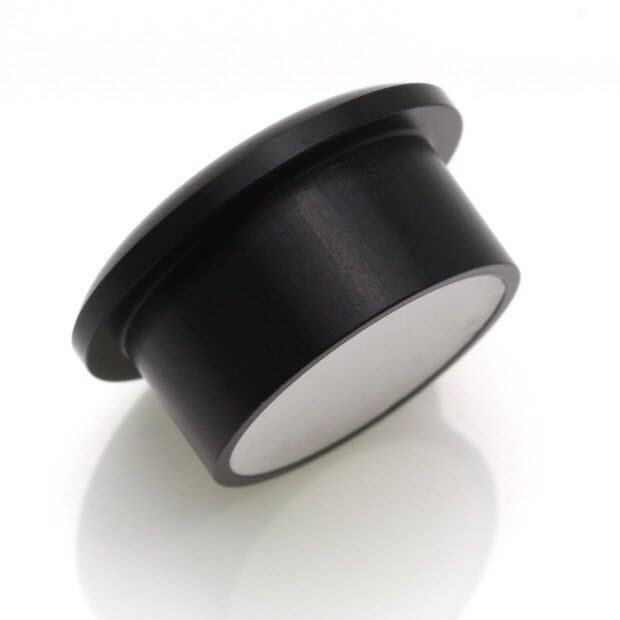

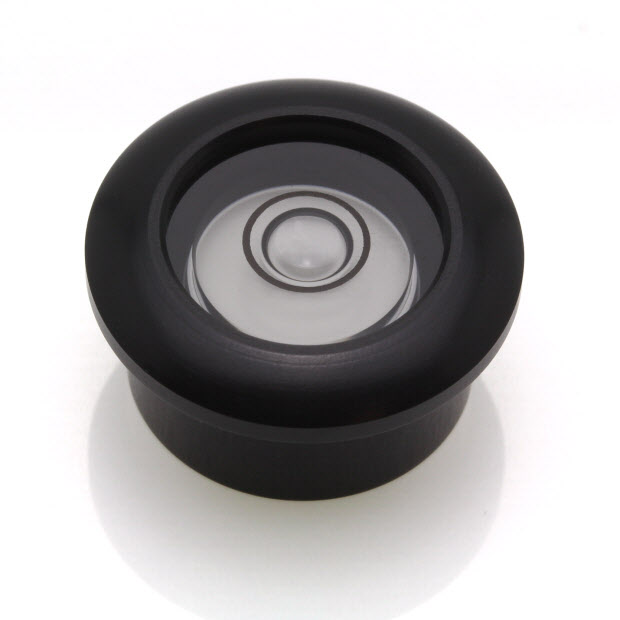

CF22B – Flush Mount Circular Level, Ø22mm, Black
CF22B – Flush Mount Circular Level, Ø22mm, Black
12

Features

  • Sensitivity 34' per 2mm bubble
  • High quality Plastic vial
  • Black Anodised finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 22 mm
Sensitivity 34 minutes per 2mm
Vial Material Acrylic (PMMA) -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Press fit or bonded -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -

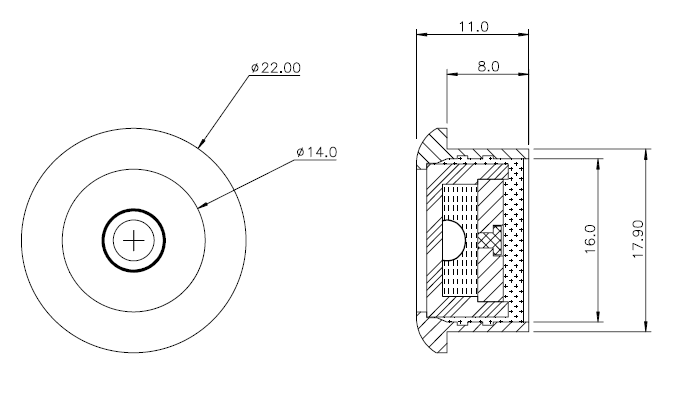

Dimension Value Unit
Flange Diameter 22 mm
Bore Diameter 17.9 mm
Overall Height 11 mm
Depth Below Flange 8 mm
Weight 5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
