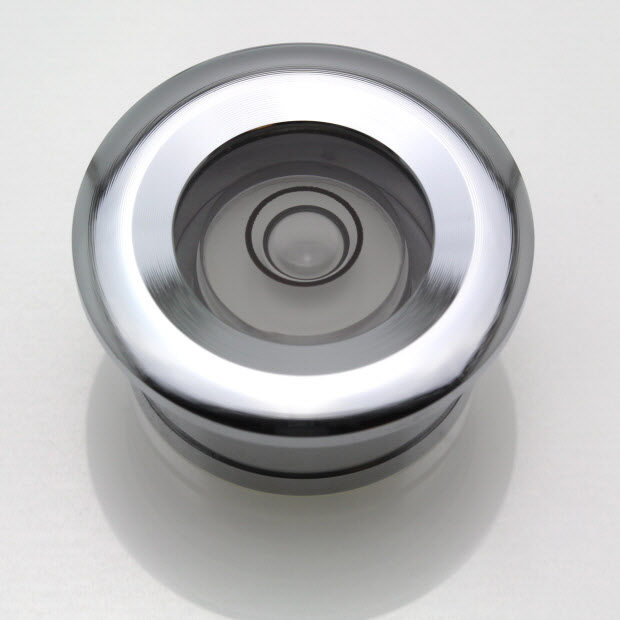

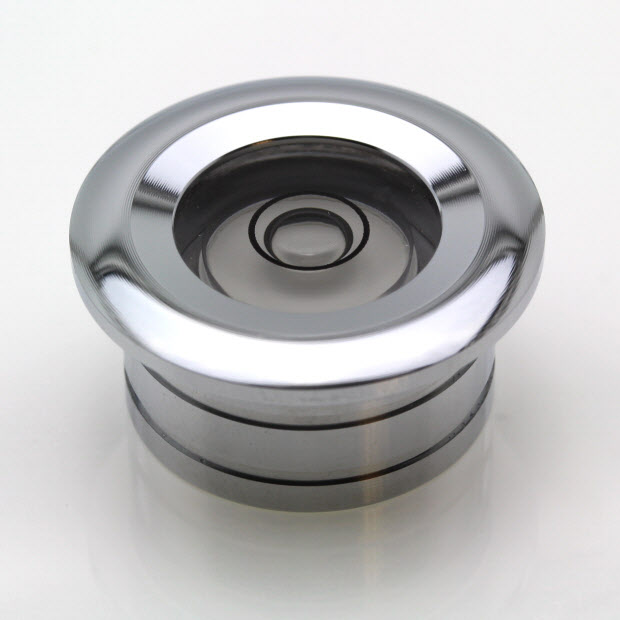

Circular Levels » Flush Mounted Circular Levels » CF25 - Flush Mount Circular Level, Ø25mm, Chrome finish

Product Datasheet (pdf 81 kB) CF25 – Flush Mount Circular Level, Ø25mm, Chrome finish

Features

  • Sensitivity 34' per 2mm bubble
  • High quality plastic vial
  • Chrome plated finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 25 mm
Sensitivity 34 minutes per 2mm
Vial Material PMMA -
Case Material Aluminium -
Finish Chrome Plate -
Mounting Method Press fit or bonded -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Flange Diameter 25 mm
Bore Diameter 20 mm
Overall Height 12 mm
Depth Below Flange 10 mm
Weight 6.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
