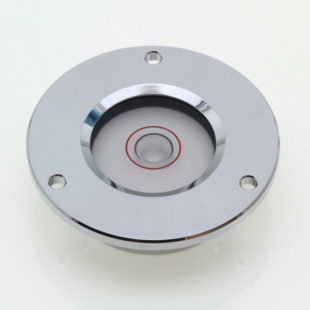

Product Drawing (pdf 64 KB) CGF50 – Flush mount circular level, Ø50mm, chrome, Glass vial
Features
- Sensitivity 12' per 2mm bubble
- High quality glass vial
- Chrome plated finish
- Set level with reference to the underside of the mounting flange.
Applications
- Tripod and camera mount levelling
- Mobile crane levellling
- High quality weighing scales and platforms
- Tribrach levellling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 50 | mm |
Sensitivity | 12 | minutes per 2mm |
Vial Material | Glass | - |
Case Material | Aluminium | - |
Finish | Chrome Plated | - |
Mounting Method | Screw down or bonded | - |
Bubble Size | 8 | mm |
Ring Diameter | 10.8 | mm |
Ring Colour | Red | - |
Liquid Colour | Clear | - |
Light | none | - |

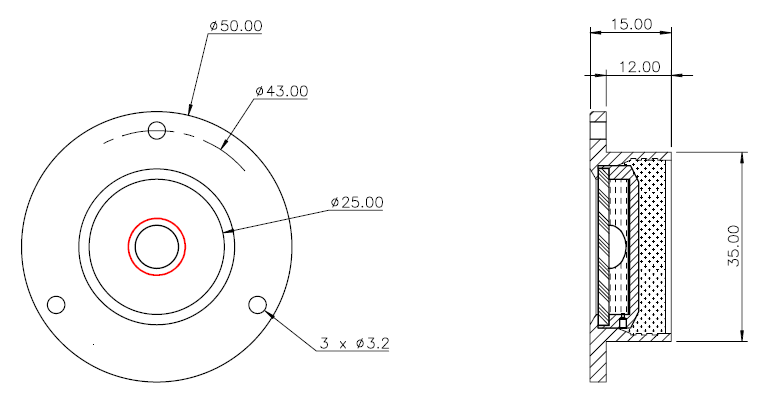

Dimension | Value | Unit |
---|---|---|
Flange Diameter | 50 | mm |
Bore Diameter | 35 | mm |
Overall Height | 15 | mm |
Depth Below Flange | 12 | mm |
Pitch Centre Diameter For Mounting Holes | 43 | mm |
Hole Diameter | 3.1 | mm |
Weight | 30.3 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 60 | °C |
Storage Temperature Range | -40 to 70 | °C |
