Circular Levels » Flush Mounted Circular Levels » CPF25 - Flush mount circular level, Ø25mm, chrome, plastic vial

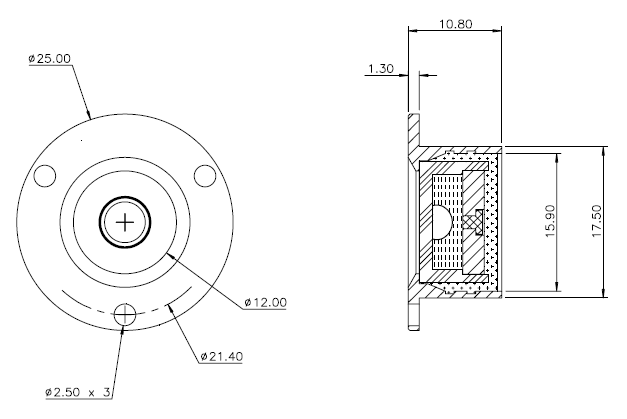

Product Drawing (pdf 79 KB) CPF25 – Flush mount circular level, Ø25mm, chrome, plastic vial

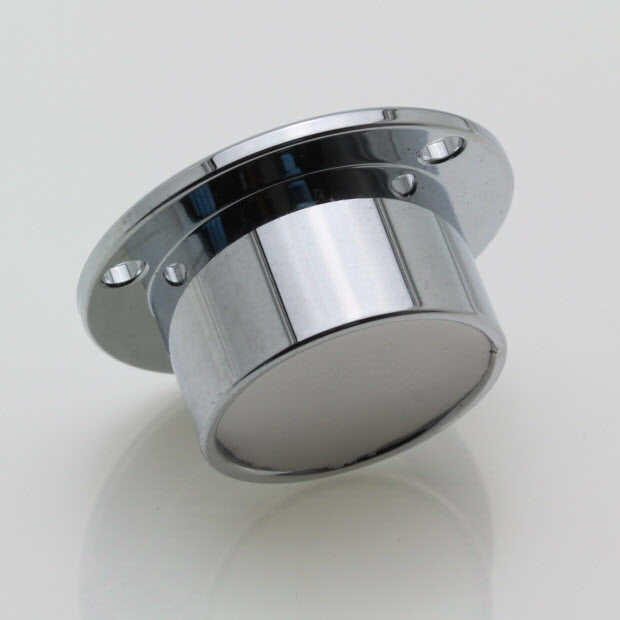

CPF25 – Flush mount circular level, Ø25mm, chrome, plastic vial

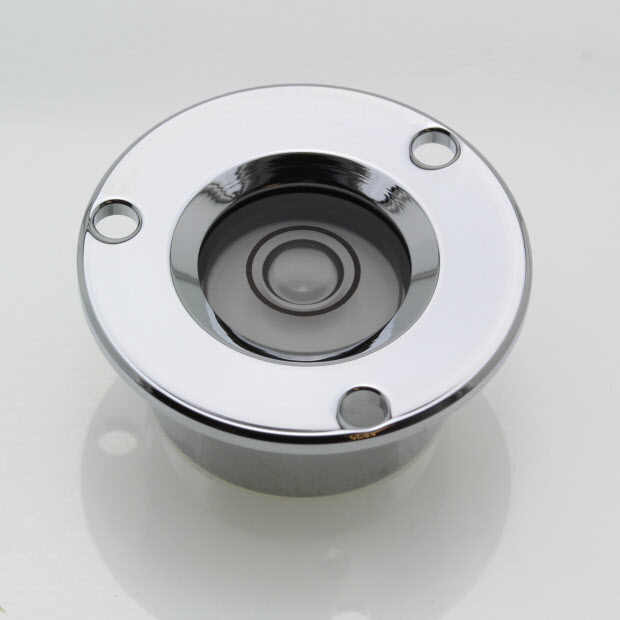

CPF25 – Flush mount circular level, Ø25mm, chrome, plastic vial
12

Features

  • Sensitivity 34' per 2mm bubble
  • High quality plastic vial
  • Chrome plated finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 25 mm
Sensitivity 34 minutes per 2mm
Vial Material Acrylic (PMMA) -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or bonded -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Flange Diameter 25 mm
Bore Diameter 17.5 mm
Overall Height 10.8 mm
Depth Below Flange 9.5 mm
Pitch Centre Diameter For Mounting Holes 21.4 mm
Hole Diameter 2.5 mm
Weight 5.05 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
