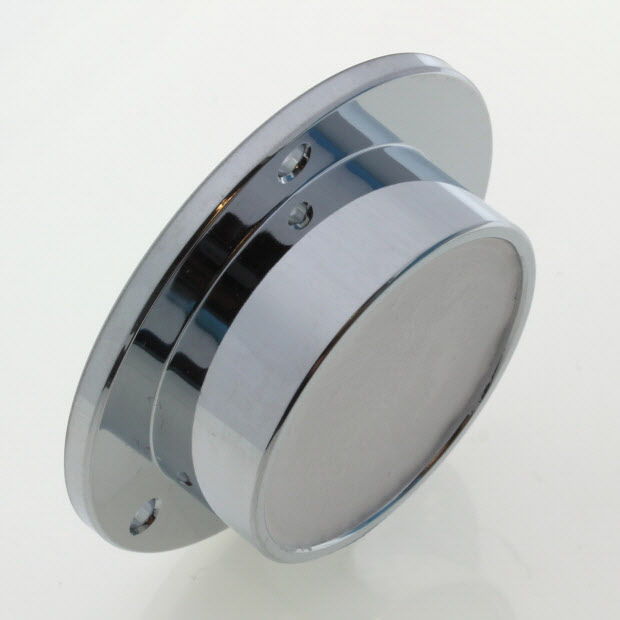

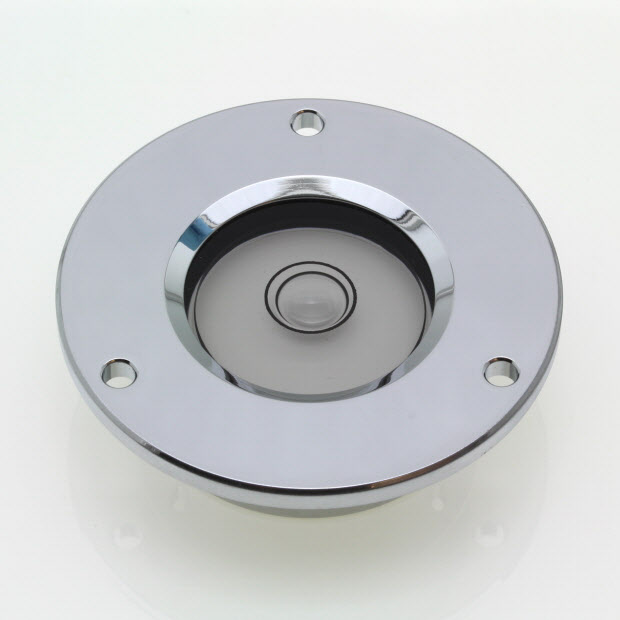

Circular Levels » Flush Mounted Circular Levels » CPF50 - Flush mount circular level, Ø50mm, chrome, plastic vial

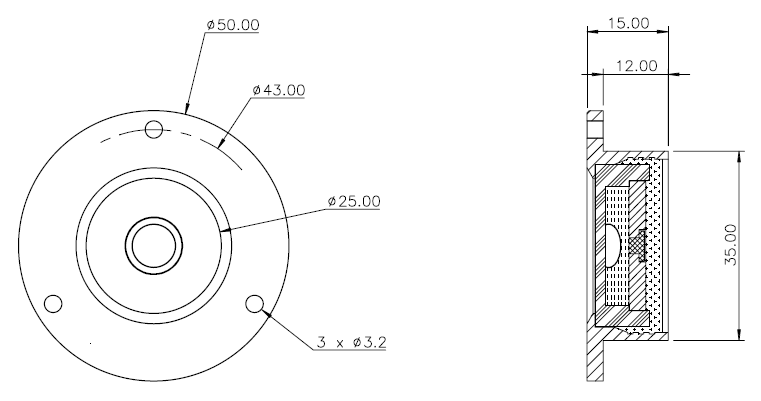

Product Drawing (pdf 63 kB) CPF50 – Flush mount circular level, Ø50mm, chrome, plastic vial

Features

  • Sensitivity 40' per 2mm bubble
  • High quality plastic vial
  • Chrome plated finish
  • Set level with reference to the underside of the mounting flange.

Applications

  • Tripod and camera mount levelling
  • Mobile crane levellling
  • High quality weighing scales and platforms
  • Tribrach levellling

Product Specification

Parameter Value Unit
Diameter 50 mm
Sensitivity 40 minutes per 2mm
Vial Material Plastic -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or bonded -
Bubble Size 7.2 mm
Ring Diameter 9 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Flange Diameter 50 mm
Bore Diameter 35 mm
Overall Height 15 mm
Depth Below Flange 12 mm
Pitch Centre Diameter For Mounting Holes 43 mm
Hole Diameter 3.1 mm
Weight 29.16 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
