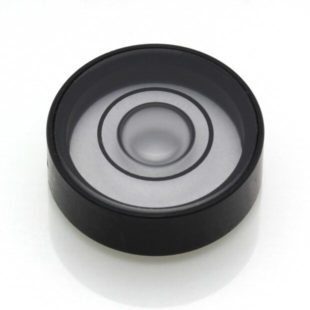

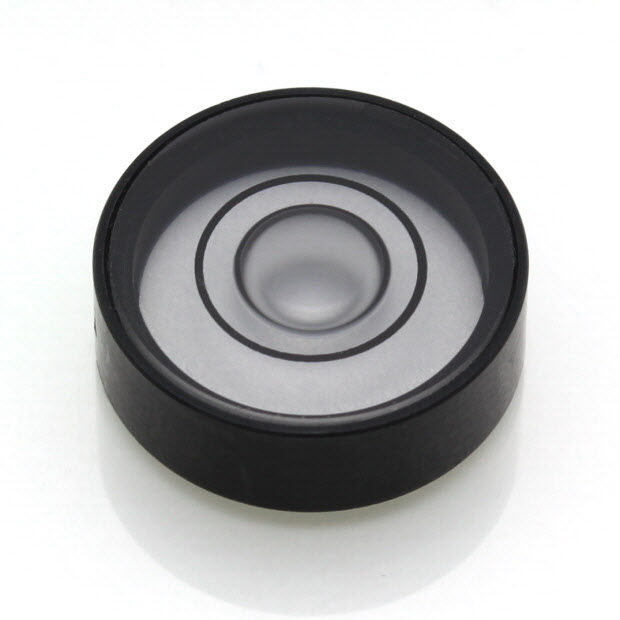

Product Drawing (pdf 60 KB) 5590/2 – Circular vial, Ø15.5mm, silver back, 20’/0.1"
Features
- Sensitivity 16' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Transparent
- Wide operational temperature range
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 15.5 | mm |
Height | 5.7 | mm |
Sensitivity | 16 | minutes per 2mm |
Backing Colour | Silver | - |
Bubble Size | 5.33 | mm |
Ring Diameter | 8 | mm |
Ring Colour | Black | - |
Finish | Black Anodised | - |
Liquid Colour | Clear | - |
Lens Material | Glass | - |

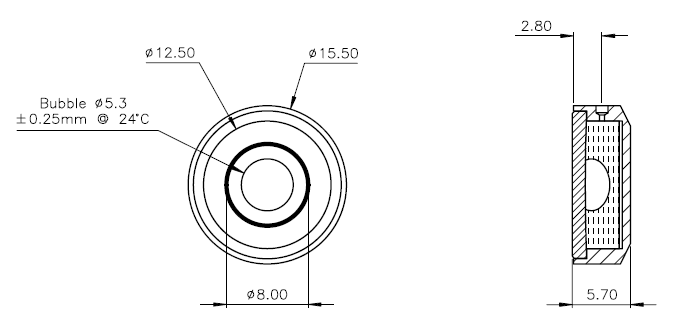

Dimension | Value | Unit |
---|---|---|
Diameter | 15.5 | mm |
Height | 5.7 | mm |
Weight | 1.96 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -30 to 70 | °C |
