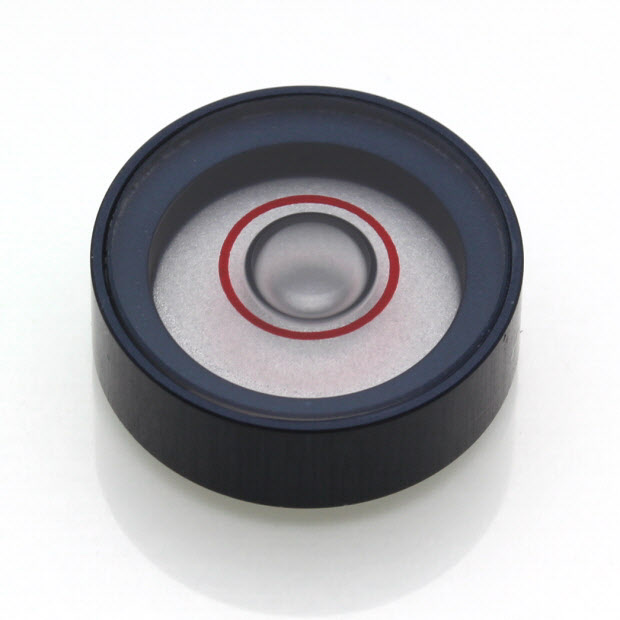

Circular Levels » Glass Circular Vials » 5609/1 - Circular vial, Ø15mm, silver back, 20'/2mm

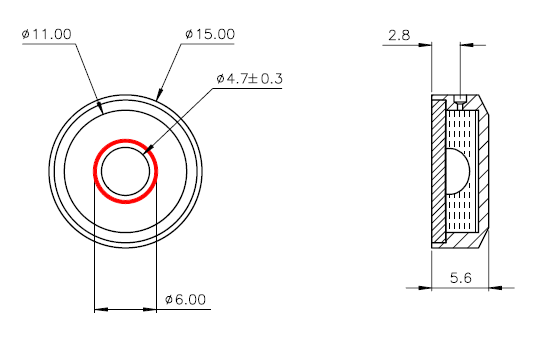

Product Drawing (pdf 61 kB) 5609/1 – Circular vial, Ø15mm, silver back, 20’/2mm

Features

  • Sensitivity 20' per 2mm bubble movement
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Silver Backing
  • Transparent Version Available
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 15 mm
Height 5.6 mm
Sensitivity 20 minutes per 2mm
Backing Colour Silver -
Bubble Size 4.7 mm
Ring Diameter 6 mm
Ring Colour Red -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 15 mm
Height 5.6 mm
Weight 1.98 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
