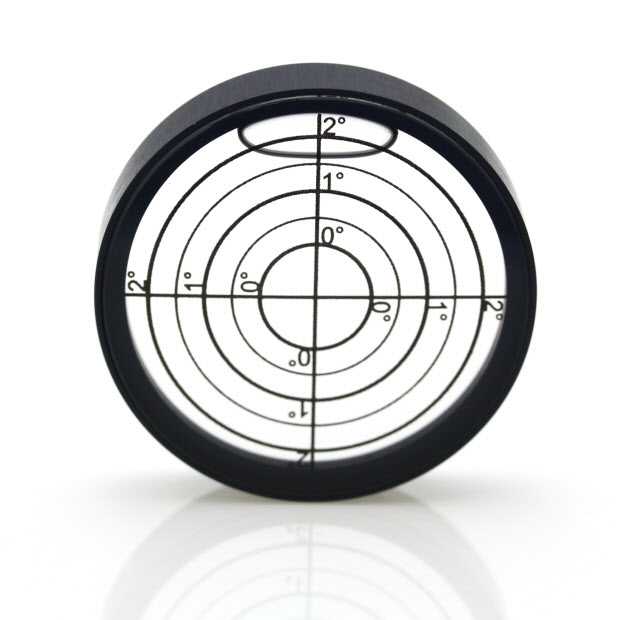

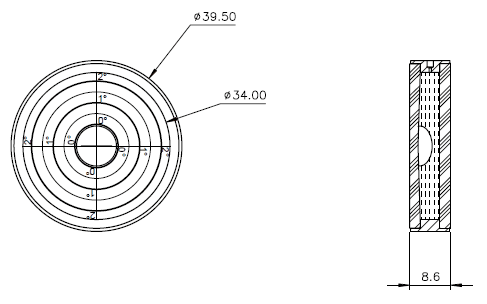

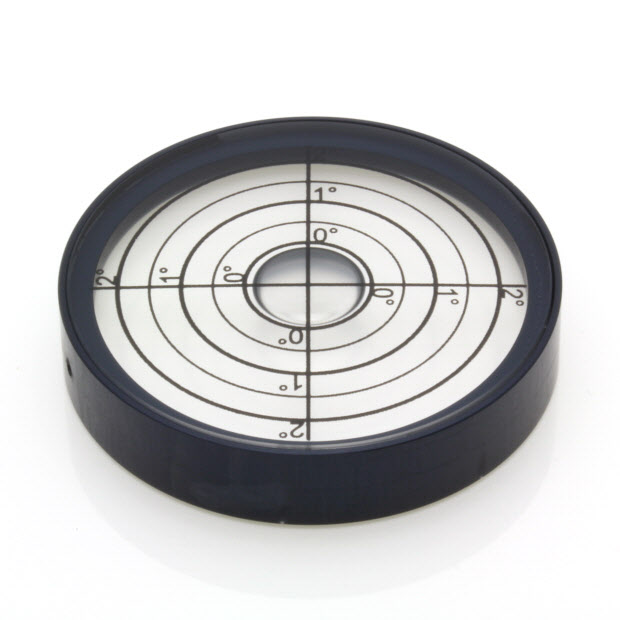

Product Drawing (pdf 85 KB) 5627/1 – Circular vial, Ø39.5mm, transparent, sensitivity 1°/5mm
Features
- Sensitivity 1degree per 5mm bubble movement
- Measurement range ±2°
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Transparant base (suitable for backlighting
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 39.5 | mm |
| Height | 8.6 | mm |
| Sensitivity | 1 | degree per division |
| Backing Colour | Transparent | - |
| Bubble Size | 9.25 | mm |
| Ring Diameter | 10.3 | mm |
| Ring Colour | Black | - |
| Finish | Black anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 39.5 | mm |
| Height | 8.6 | mm |
| Weight | 19.6 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to +65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
