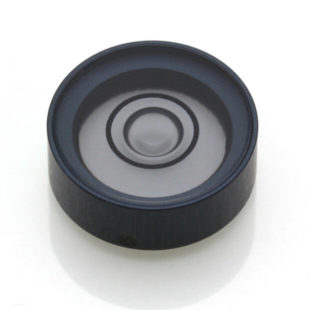

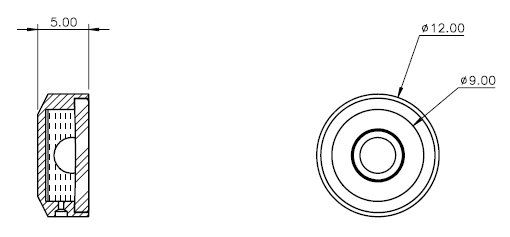

Product Drawing (pdf 60 KB) 5801/1 – Glass Circular vial, Ø12x5mm, white back, 50’/2mm
Features
- Sensitivity 50' Per 2mm bubble movement
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Transparent version Available
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 12 | mm |
| Height | 5 | mm |
| Sensitivity | 50 | minutes per 2mm |
| Backing Colour | White | - |
| Bubble Size | 3.5 | mm |
| Ring Diameter | 5.3 | mm |
| Ring Colour | Black | - |
| Finish | Black Anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 12 | mm |
| Height | 5 | mm |
| Weight | 1.03 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
