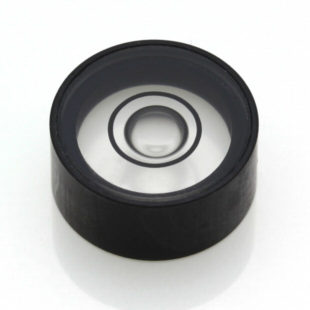

Circular Levels » Glass Circular Vials » 5801/2 - Glass Circular vial, Ø12x5.4mm, Transparent back, 50'/2mm

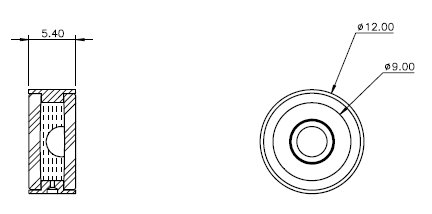

Product Drawing (pdf 57 kB) 5801/2 – Glass Circular vial, Ø12×5.4mm, Transparent back, 50’/2mm

Features

  • Sensitivity 50'Per 2mm bubble movement
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 12 mm
Height 5.4 mm
Sensitivity 50 minutes per 2mm
Backing Colour Transparent -
Bubble Size 3.5 mm
Ring Diameter 5.3 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 12 mm
Height 5.4 mm
Weight 1.24 Grams
Parameter Value Unit
Operational Temperature Range -20 to +65 °C
Storage Temperature Range -30 to 70 °C
