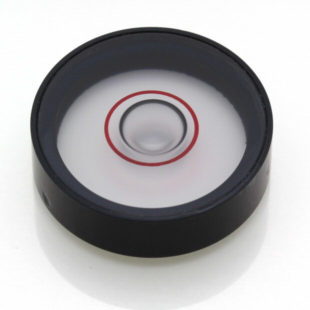

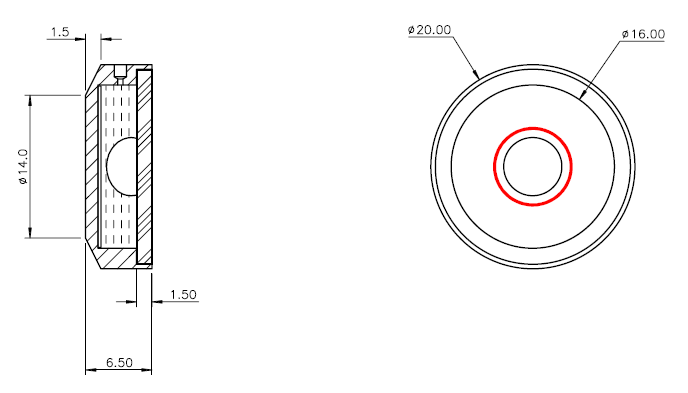

Product Drawing (pdf 61 KB) 5805/1 – Circular vial, Ø20.mm, 12’/2mm
Features
- Sensitivity 12' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- White Backing
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 20 | mm |
| Height | 6.5 | mm |
| Sensitivity | 12 | minutes per 2mm |
| Backing Colour | White | - |
| Bubble Size | 5.7 | mm |
| Ring Diameter | 7.8 | mm |
| Ring Colour | Red | - |
| Finish | Black Anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 20 | mm |
| Height | 6.5 | mm |
| Weight | 3.58 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
