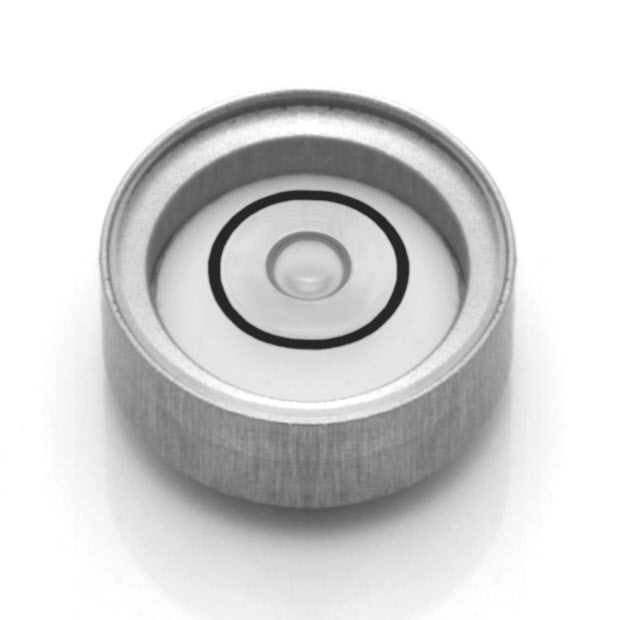

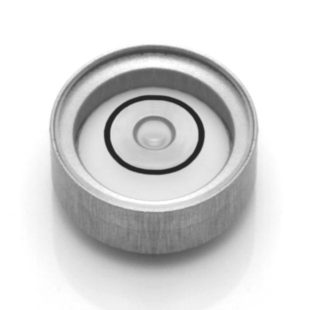

Product Drawing (pdf 49 KB) 5806/1 – Glass Circular vial, Ø11x5mm, sens 39’/2mm
Features
- Sensitivity 39' per 2mm bubble movement
- Clear anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 11 | mm |
| Height | 5 | mm |
| Sensitivity | 39 | minutes per 2mm |
| Backing Colour | White | - |
| Bubble Size | 2 | mm |
| Ring Diameter | 4.8 | mm |
| Ring Colour | Black | - |
| Finish | Clear Anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |

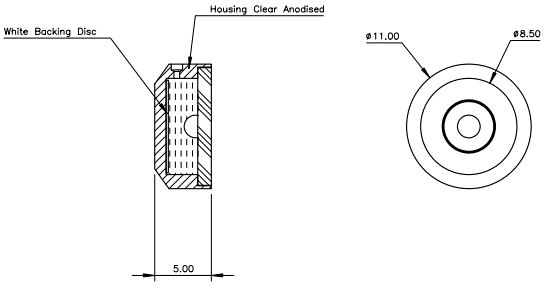

| Dimension | Value | Unit |
|---|---|---|
| Diameter | 11 | mm |
| Height | 5 | mm |
| Weight | 0.87 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to +65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
