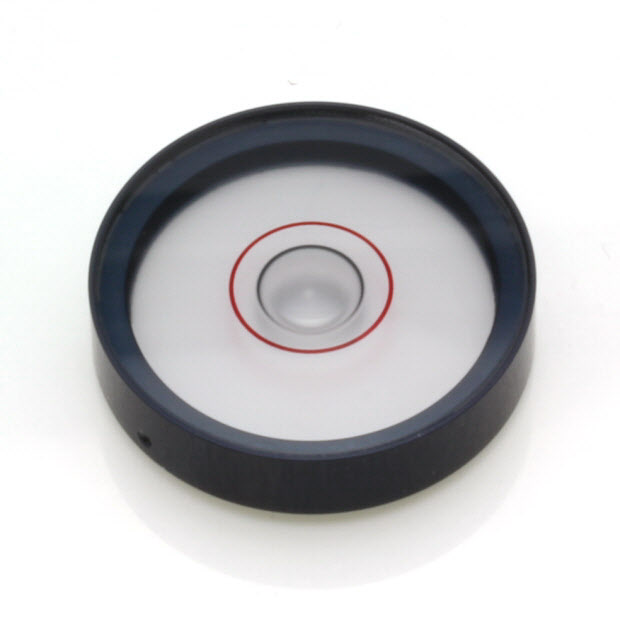

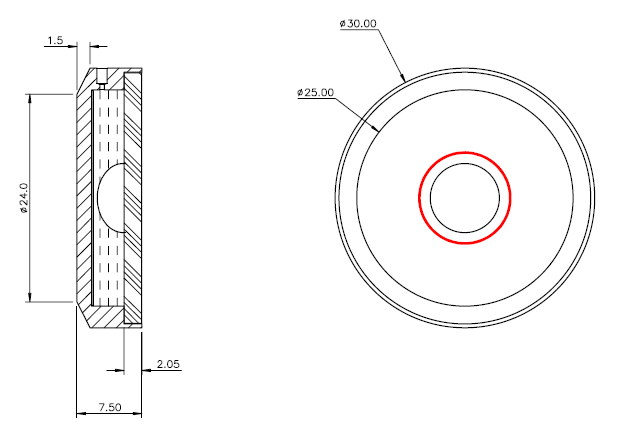

Product Drawing (pdf 64 KB) 5818/1 – Circular vial, Ø30mm, white back, 12’/2mm
Features
- Sensitivity 12' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- White backing
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 30 | mm |
| Height | 7.5 | mm |
| Sensitivity | 12 | minutes per 2mm |
| Backing Colour | White | - |
| Bubble Size | 8 | mm |
| Ring Diameter | 10.8 | mm |
| Ring Colour | Red | - |
| Finish | Black anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 30 | mm |
| Height | 7.5 | mm |
| Weight | 9.6 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
