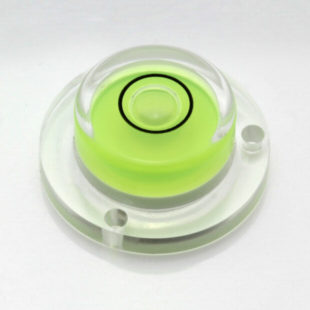

Circular Levels » Plastic Circular Levels » AVF20 - Plastic circular level, Ø20mm, green liquid

Product Datasheet (pdf 59 kB) AVF20 – Plastic circular level, Ø20mm, green liquid

Features

  • Low cost plastic circular level
  • Can be mounted or free standing
  • Yellow/Green Liquid
  • Sensitivity = 53' per 2mm bubble movement

Applications

  • Construction levels
  • Building tools
  • Cross Axis levelling

Product Specification

Parameter Value Unit
Diameter 20 mm
Sensitivity 53 minutes per 2mm
Vial Material Acrylic -
Case Material ABS -
Mounting Method Screw down or free standing -
Bubble Size 4.5 mm
Ring Diameter 5.8 mm
Ring Colour Black -
Liquid Colour Yellow/Green -
Dimension Value Unit
Overall Diameter 20 mm
Body Diameter 14 mm
Overall Height 8 mm
Flange Height 2.5 mm
Pitch Centre Diameter For Mounting Holes 17 mm
Hole Diameter 1.5 mm
Weight 1.6 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
