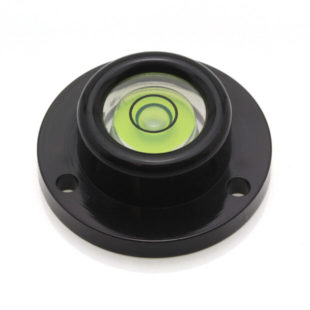

AVF30G – Plastic circular level, Ø30mm, green liquid
Features
- Low cost plastic circular level
- Can be mounted or free standing
- Yellow/Green Liquid
- Sensitivity = 53' per 2mm bubble movement
Applications
- Construction levels
- Building tools
- Cross Axis levelling
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 30 | mm |
| Sensitivity | 53 | minutes per 2mm |
| Vial Material | Acrylic (PMMA) | - |
| Case Material | ABS | - |
| Mounting Method | Screw down or free standing | - |
| Bubble Size | 4.8 | mm |
| Ring Diameter | 5.8 | mm |
| Ring Colour | Black | - |
| Liquid Colour | Yellow/Green | - |
| Dimension | Value | Unit |
|---|---|---|
| Overall Diameter | 30 | mm |
| Body Diameter | 20 | mm |
| Overall Height | 10 | mm |
| Flange Height | 3.5 | mm |
| Pitch Centre Diameter For Mounting Holes | 25 | mm |
| Hole Diameter | 2.3 | mm |
| Weight | 4.64 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -40 to 70 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 10 - 24 | $1.92 | £1.82 |
| 25 - 49 | $1.73 | £1.64 |
| 50 - 99 | $1.57 | £1.50 |
| 100 - 249 | $1.42 | £1.36 |
| 250 - 499 | $1.26 | £1.20 |
| 500 - 999 | $1.12 | £1.07 |
| 1000+ | POA | POA |
Quantity
Minimum order quantity:
10
106 available for immediate despatch. More available in 42 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: AVF30G)
