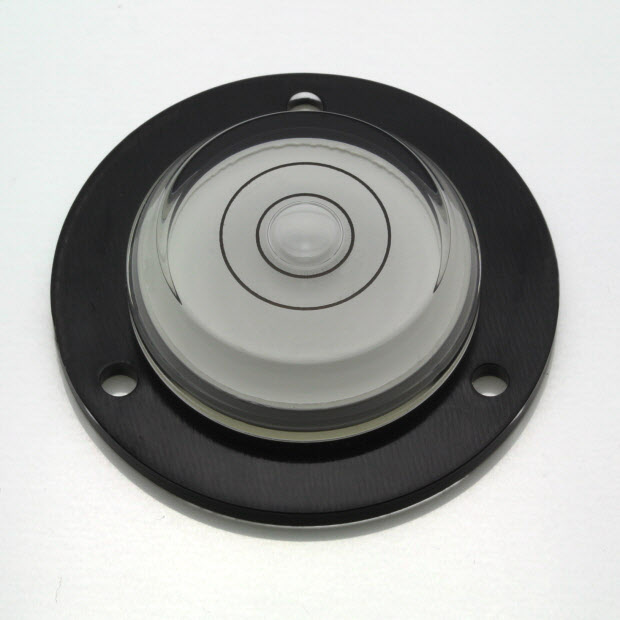

AVF43B – Plastic circular level, Ø43mm, clear liquid

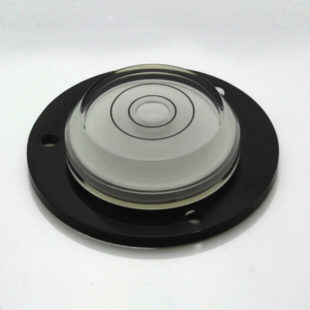

AVF43B – Plastic circular level, Ø43mm, clear liquid
12

Features

  • Low cost plastic circular level
  • Can be mounted or free standing
  • Clear Liquid
  • Sensitivity = 39' per 2mm bubble movement

Applications

  • Construction levels
  • Building tools
  • Cross Axis levelling

Product Specification

Parameter Value Unit
Diameter 43 mm
Sensitivity 39 minutes per 2mm
Vial Material Acrylic (PMMA) -
Case Material ABS -
Mounting Method Screw down or free standing -
Bubble Size 6.5 ± 1.0 mm
Ring Diameter 8 and 14 mm
Ring Colour Black -
Liquid Colour Clear -
Dimension Value Unit
Overall Diameter 43 mm
Body Diameter 30 mm
Overall Height 11 mm
Flange Height 2.6 mm
Pitch Centre Diameter For Mounting Holes 36 mm
Hole Diameter 3.2 mm
Weight 8.4 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
