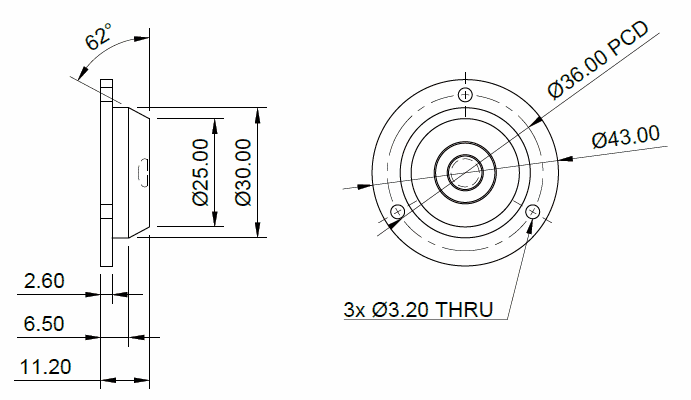

Product Drawing (pdf 165 KB) AVF43BG – Plastic circular level, Ø43mm, green liquid

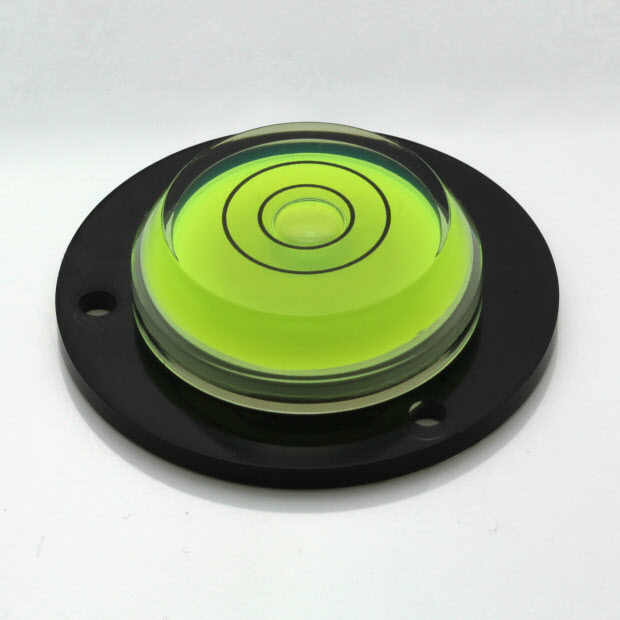

AVF43BG – Plastic circular level, Ø43mm, green liquid

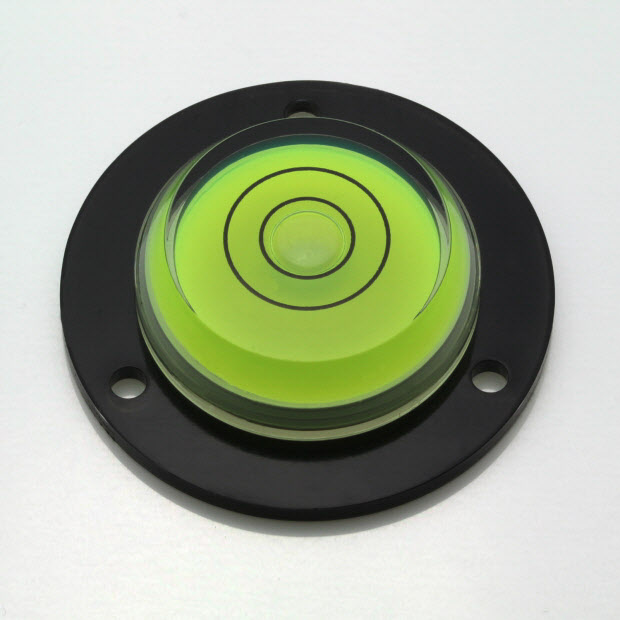

AVF43BG – Plastic circular level, Ø43mm, green liquid
12

Features

  • Low cost plastic circular level
  • Can be mounted or free standing
  • Yellow/Green Liquid
  • Sensitivity = 39' per 2mm bubble movement

Applications

  • Construction levels
  • Building tools
  • Cross Axis levelling

Product Specification

Parameter Value Unit
Diameter 43 mm
Sensitivity 39 minutes per 2mm
Vial Material Acrylic (PMMA) -
Case Material ABS -
Mounting Method Screw down or free standing -
Bubble Size 6.5 ± 1.0 mm
Ring Diameter 8 and 14 mm
Ring Colour Black -
Liquid Colour Yellow/Green -
Dimension Value Unit
Overall Diameter 43 mm
Body Diameter 30 mm
Overall Height 11 mm
Flange Height 2.6 mm
Pitch Centre Diameter For Mounting Holes 36 mm
Hole Diameter 3 mm
Weight 8.4 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
