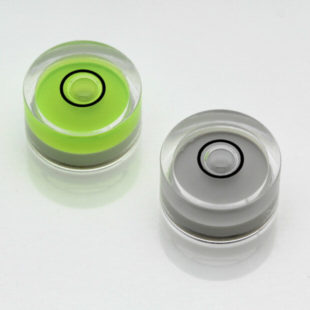

AV11G – Plastic circular vial, Ø11.3×6.2mm, Green, 43’/2mm
1

Features

  • Acrylic housing, high clarity scratch free PMMA
  • White backing
  • Yellow/Green liquid
  • Sensitivity 53' per 2mm bubble movement
  • Highest quality plastic vial

Applications

  • Camera tripods
  • Weighing scales
  • Compass levelling

Product Specification

Parameter Value Unit
Diameter 11.25 mm
Height 6 mm
Sensitivity 53 minutes per 2mm
Backing Colour White -
Bubble Size 3.1 mm
Ring Diameter 4.4 mm
Ring Colour Black -
Liquid Colour Yellow/Green -

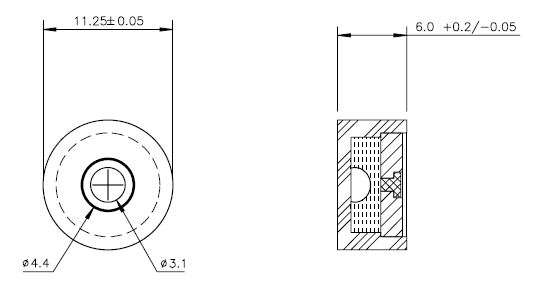

Dimension Value Unit
Diameter 11.25 mm
Height 6 mm
Weight 0.6 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
