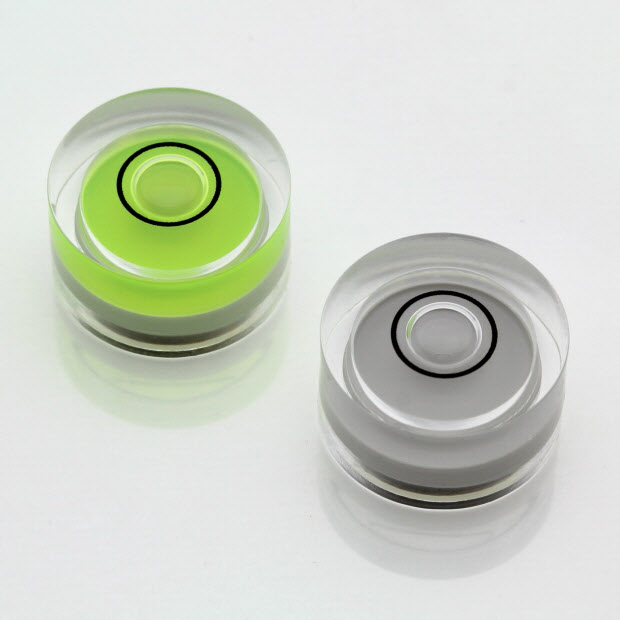

Circular Levels » Plastic Circular Vials » AV15G - Plastic circular vial, Ø15x8mm, Green, 34'/2mm

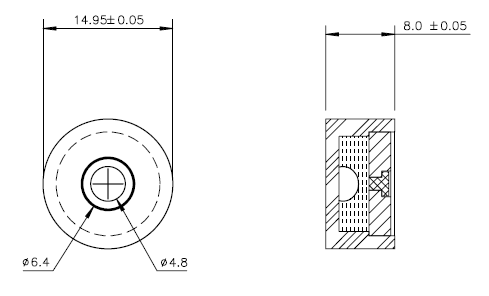

Product Drawing (pdf 72 kB) AV15G – Plastic circular vial, Ø15x8mm, Green, 34’/2mm

Features

  • Acrylic housing, high clarity scratch free PMMA
  • White backing
  • Yellow/Green liquid
  • Sensitivity 34' per 2mm bubble movement
  • Highest quality plastic vial

Applications

  • Camera tripods
  • Weighing scales
  • Compass levelling

Product Specification

Parameter Value Unit
Diameter 15 mm
Height 8 mm
Sensitivity 34 minutes per 2mm
Backing Colour White -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Yellow/Green -
Dimension Value Unit
Diameter 15 mm
Height 8 mm
Weight 1.39 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
