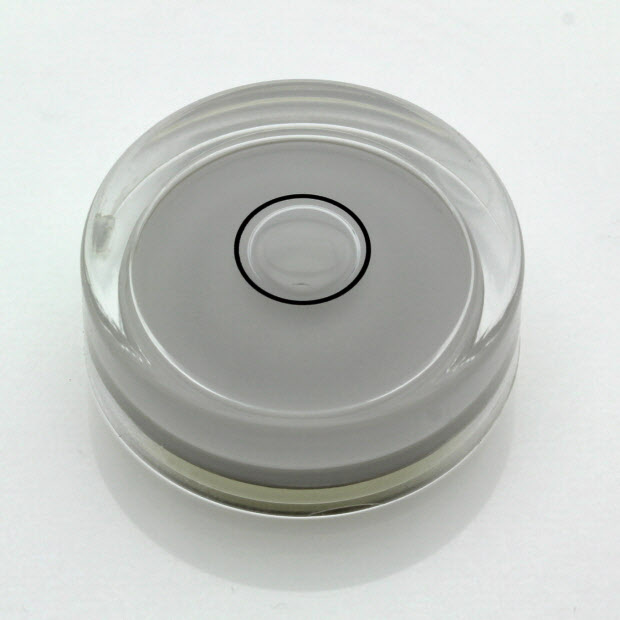

Circular Levels » Plastic Circular Vials » AV30 - Plastic circular vial, Ø30x10mm, Clear, 37'/2mm

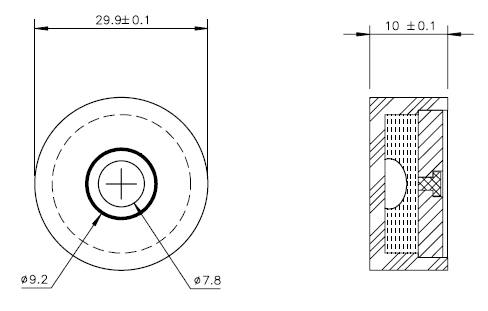

Product Drawing (pdf 87 kB) AV30 – Plastic circular vial, Ø30x10mm, Clear, 37’/2mm

Features

  • Acrylic housing, high clarity scratch free PMMA
  • White backing
  • Clear liquid
  • Sensitivity 37' per 2mm bubble movement
  • Highest quality plastic vial

Applications

  • Camera tripods
  • Weighing scales
  • Compass levelling

Product Specification

Parameter Value Unit
Diameter 30 mm
Height 10 mm
Sensitivity 37 minutes per 2mm
Backing Colour White -
Bubble Size 7.8 mm
Ring Diameter 8.8 mm
Ring Colour Black -
Liquid Colour Clear -
Dimension Value Unit
Diameter 30 mm
Height 10 mm
Weight 6.4 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
