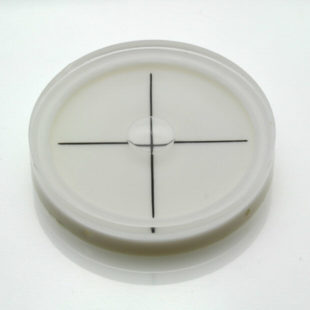

Circular Levels » Plastic Circular Vials » AV60 - Plastic circular vial, Ø60x12mm, cross lines

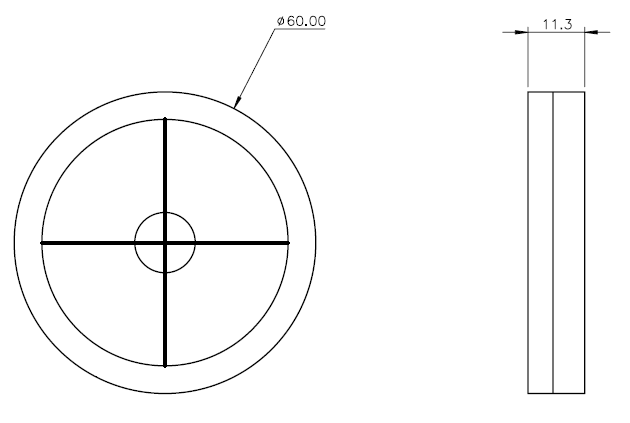

Product Drawing (pdf 55 kB) AV60 – Plastic circular vial, Ø60x12mm, cross lines

Features

  • Sensitivity = 1degree per 1.7mm bubble movement
  • Cross Hairs
  • Dual axis measurement

Applications

  • Circular inclinometer levels
  • Vehicle levelling and angle monitoring
  • Crane levelling and angle monitoring

Product Specification

Parameter Value Unit
Diameter 60 mm
Height 11.3 mm
Sensitivity 1 degree per 1.7mm
Backing Colour White -
Bubble Size 12 mm
Ring Diameter mm
Ring Colour -
Liquid Colour Clear -
Dimension Value Unit
Diameter 60 mm
Height 11.3 mm
Weight 35.3 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
