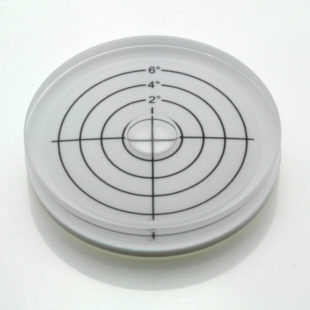

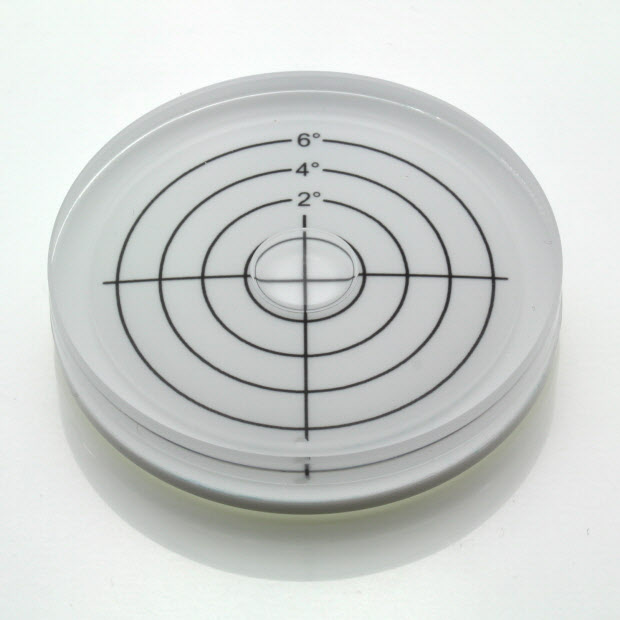

Circular Levels » Plastic Circular Vials » AV60/6 - Plastic circular level, Ø60x12mm, range 0-6°

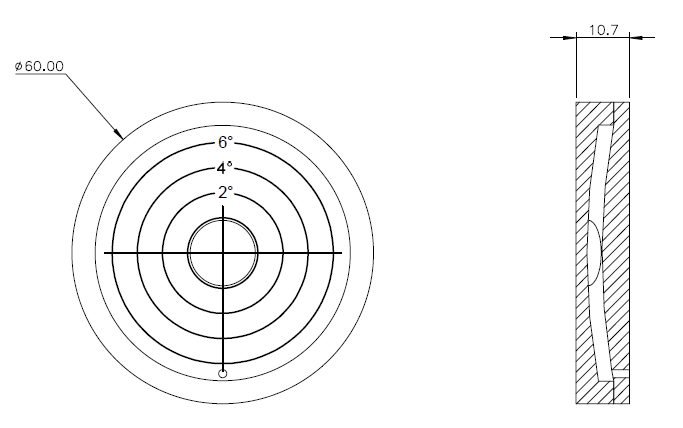

Product Drawing (pdf 146 kB) AV60/6 – Plastic circular level, Ø60x12mm, range 0-6°

Features

  • Sensitivity = 2 degree per 5mm bubble movement
  • 2,4,6° Markings
  • Dual axis measurement

Applications

  • Circular inclinometer levels
  • Vehicle levelling and angle monitoring
  • Crane levelling and angle monitoring

Product Specification

Parameter Value Unit
Diameter 60 mm
Height 11.3 mm
Sensitivity 2 degree per 5mm
Backing Colour White -
Bubble Size 12.5 mm
Ring Diameter mm
Ring Colour Black -
Liquid Colour Clear -
Dimension Value Unit
Diameter 60 mm
Height 11.3 mm
Weight 33.3 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
