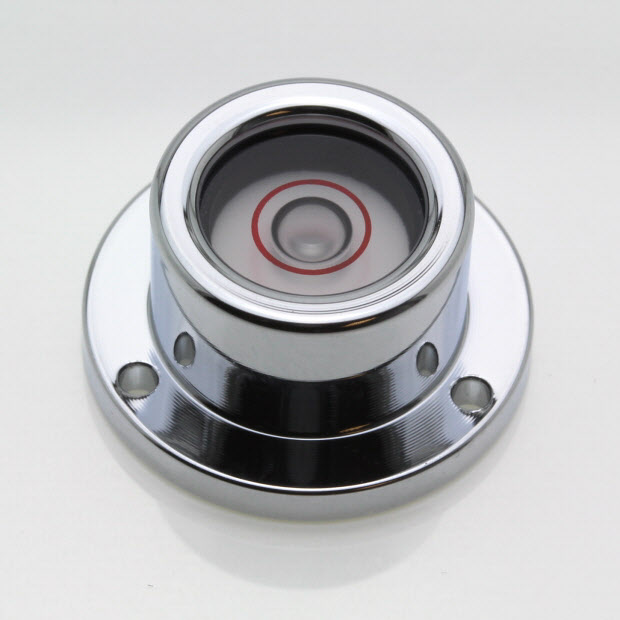

Circular Levels » Surface Mounted Circular Levels » CG20 - Circular level, Ø20mm, chrome finish, glass vial 25min/2mm

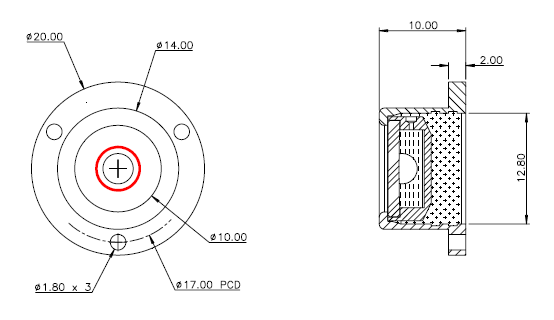

Product Drawing (pdf 97 kB) CG20 – Circular level, Ø20mm, chrome finish, glass vial 25min/2mm

Features

  • Chrome plated aluminium housing
  • Precision glass vial
  • Sensitivity 25' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 20 mm
Sensitivity 25 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or free standing -
Bubble Size 3.5 mm
Ring Diameter 5.3 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 20 mm
Body Diameter 14 mm
Overall Height 10 mm
Flange Height 2 mm
Pitch Centre Diameter For Mounting Holes 17 mm
Hole Diameter 1.8 mm
Weight 3.8 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
