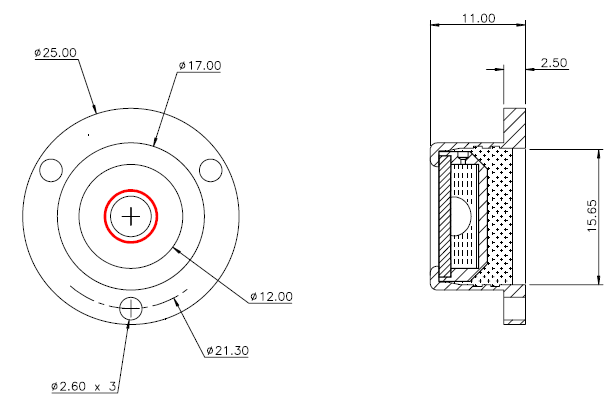

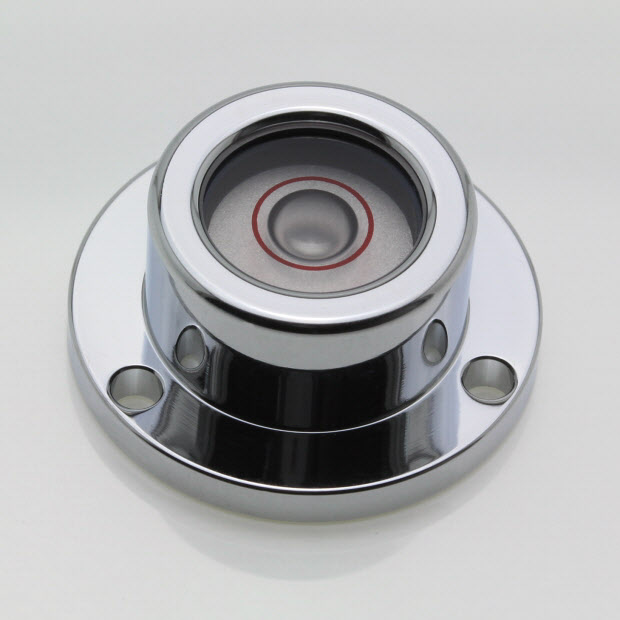

Product Drawing (pdf 197 KB) CG25 – Circular level, Ø25mm, Nickel finish, glass vial 20min/2mm
Features
- Chrome plated aluminium housing
- Precision glass vial
- Sensitivity 20' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 25 | mm |
| Sensitivity | 20 | minutes per 2mm |
| Vial Material | Glass | - |
| Case Material | Aluminium | - |
| Finish | Nickel Plated | - |
| Mounting Method | Screw down or free standing | - |
| Bubble Size | 4.7 | mm |
| Ring Diameter | 6.3 | mm |
| Ring Colour | Red | - |
| Liquid Colour | Clear | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Overall Diameter | 25 | mm |
| Body Diameter | 17 | mm |
| Overall Height | 11 | mm |
| Flange Height | 2.5 | mm |
| Pitch Centre Diameter For Mounting Holes | 21.3 | mm |
| Hole Diameter | 2.6 | mm |
| Weight | 6.3 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -15 to 65 | °C |
| Storage Temperature Range | -40 to 70 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 1 - 4 | $10.58 | £10.08 |
| 5 - 9 | $10.05 | £9.58 |
| 10 - 24 | $9.53 | £9.07 |
| 25 - 49 | $9.01 | £8.58 |
| 50 - 99 | $8.48 | £8.08 |
| 100 - 249 | $7.95 | £7.57 |
| 250+ | POA | POA |
Quantity
Minimum order quantity:
1
290 available for immediate despatch. More available in 30 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: CG25)
