Circular Levels » Surface Mounted Circular Levels » CG30 - Circular level, glass vial, Nickel finish, Ø30mm

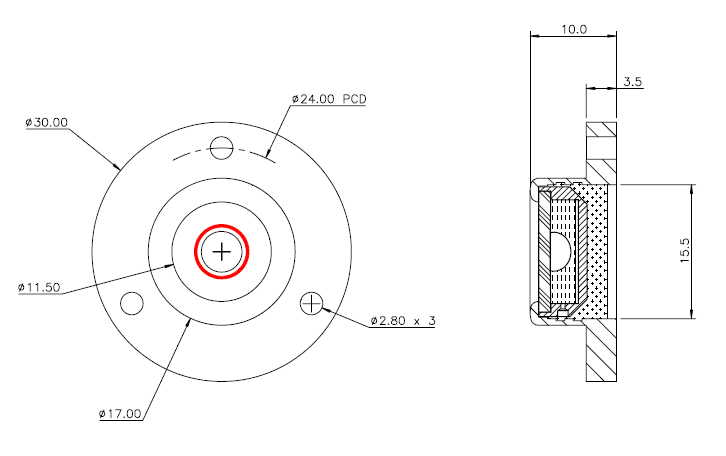

Product Drawing (pdf 79 KB) CG30 – Circular level, glass vial, Nickel finish, Ø30mm

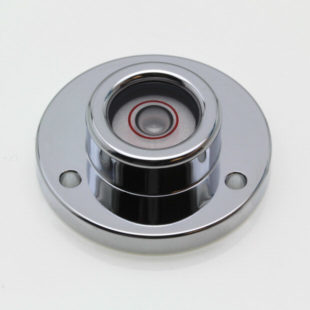

CG30 – Circular level, glass vial, Nickel finish, Ø30mm
1

Features

  • Nickel plated aluminium housing
  • Precision glass vial
  • Sensitivity 20' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 30 mm
Sensitivity 20 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Nickel Plated -
Mounting Method Screw down or free standing -
Bubble Size 4.7 mm
Ring Diameter 6.3 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 30 mm
Body Diameter 17 mm
Overall Height 10 mm
Flange Height 3.5 mm
Pitch Centre Diameter For Mounting Holes 24 mm
Hole Diameter 2.8 mm
Weight 9 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
