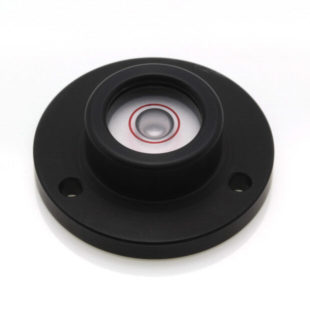

Product Drawing (pdf 79 KB) CG30B – Circular level Ø30mm, black anodised, Glass vial
Features
- Black Anodised aluminium housing
- Precision glass vial
- Sensitivity 20' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 30 | mm |
Sensitivity | 20 | minutes per 2mm |
Vial Material | Glass | - |
Case Material | Aluminium | - |
Finish | Black Anodised | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 4.7 | mm |
Ring Diameter | 6.3 | mm |
Ring Colour | Red | - |
Liquid Colour | Clear | - |
Light | none | - |
Dimension | Value | Unit |
---|---|---|
Overall Diameter | 30 | mm |
Body Diameter | 17 | mm |
Overall Height | 10 | mm |
Flange Height | 3.5 | mm |
Pitch Centre Diameter For Mounting Holes | 24 | mm |
Hole Diameter | 2.8 | mm |
Weight | 9 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -15 to 65 | °C |
Storage Temperature Range | -40 to 70 | °C |
