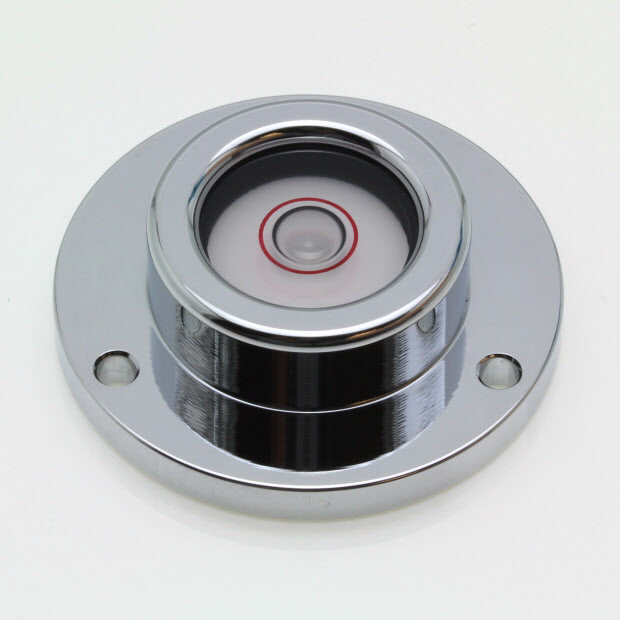

Product Drawing (pdf 76 KB) CG40 – Circular level, glass vial, ENP finish, Ø40mm
Features
- Nickel Plated aluminium housing
- Precision glass vial
- Sensitivity 12' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 40 | mm |
Sensitivity | 12 | minutes per 2mm |
Vial Material | Glass | - |
Case Material | Aluminium | - |
Finish | Nickel Plated | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 6 | mm |
Ring Diameter | 7.8 | mm |
Ring Colour | Red | - |
Liquid Colour | Clear | - |
Light | none | - |

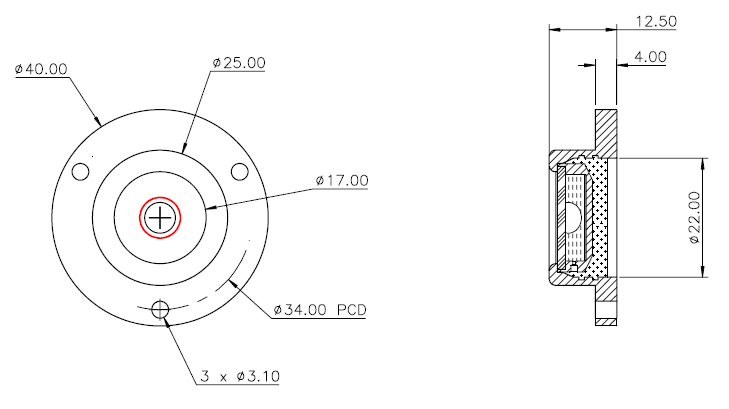

Dimension | Value | Unit |
---|---|---|
Overall Diameter | 40 | mm |
Body Diameter | 25 | mm |
Overall Height | 12.5 | mm |
Flange Height | 4 | mm |
Pitch Centre Diameter For Mounting Holes | 34 | mm |
Hole Diameter | 3.1 | mm |
Weight | 19 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -15 to 65 | °C |
Storage Temperature Range | -40 to 70 | °C |
