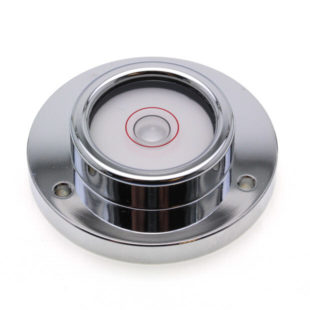

Circular Levels » Surface Mounted Circular Levels » CG60 - Circular level, glass vial, chrome finish, Ø60mm, sensitivity 10'/2mm

Product Datasheet (pdf 218 kB) CG60 – Circular level, glass vial, chrome finish, Ø60mm, sensitivity 10’/2mm

Features

  • Chrome plated aluminium housing
  • Precision glass vial
  • Sensitivity 10' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 60 mm
Sensitivity 10 minutes per 2mm
Vial Material Glass -
Case Material Aluminium -
Finish Chrome -
Mounting Method Screw down or free standing -
Bubble Size 10 mm
Ring Diameter 12.8 mm
Ring Colour Red -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 60 mm
Body Diameter 39 mm
Overall Height 17 mm
Flange Height 7 mm
Pitch Centre Diameter For Mounting Holes 50 mm
Hole Diameter 3.6 mm
Weight 60 Grams
Parameter Value Unit
Operational Temperature Range -15 to 65 °C
Storage Temperature Range -40 to 70 °C
