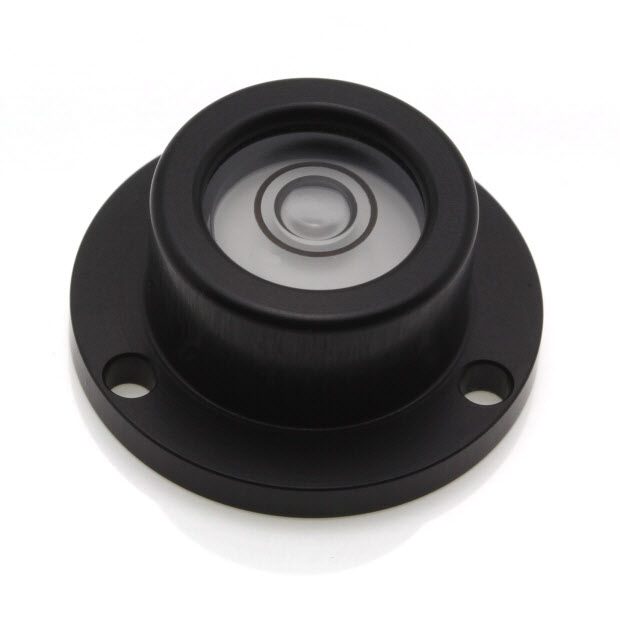

Circular Levels » Surface Mounted Circular Levels » CP25B - Circular level, Ø25mm, Black finish, plastic vial

Product Drawing (pdf 96 kB) CP25B – Circular level, Ø25mm, Black finish, plastic vial

Features

  • Black Anodised aluminium housing
  • High quality plastic vial
  • Sensitivity 34' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 25 mm
Sensitivity 34 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -

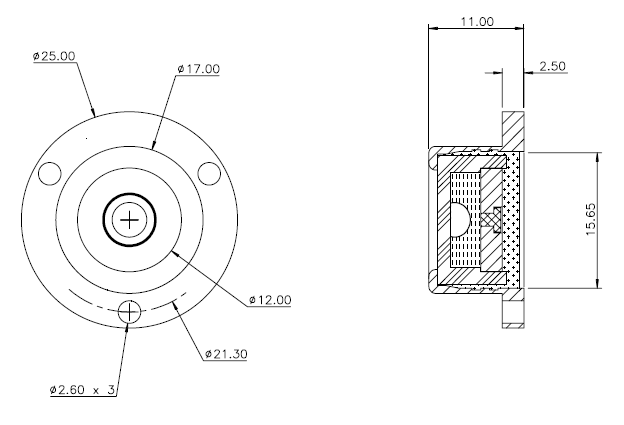

Dimension Value Unit
Overall Diameter 25 mm
Body Diameter 17 mm
Overall Height 11 mm
Flange Height 2.5 mm
Pitch Centre Diameter For Mounting Holes 21.3 mm
Hole Diameter 2.6 mm
Weight 5.3 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
