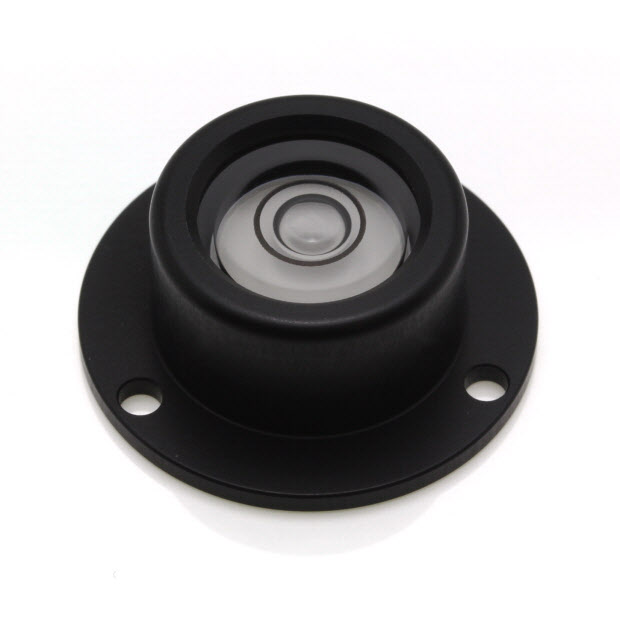

Circular Levels » Surface Mounted Circular Levels » CP27B - Circular level, Ø27mm, Black Anodised finish, plastic vial

Product Drawing (pdf 93 kB) CP27B – Circular level, Ø27mm, Black Anodised finish, plastic vial

Features

  • Black Anodised aluminium housing
  • High quality plastic vial
  • Sensitivity 34' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 26.7 mm
Sensitivity 34 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 26.7 mm
Body Diameter 18.1 mm
Overall Height 10.9 mm
Flange Height 1.5 mm
Pitch Centre Diameter For Mounting Holes 22.86 mm
Hole Diameter 2.5 mm
Weight 5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
