Circular Levels » Surface Mounted Circular Levels » CP32B - Circular level, Ø32mm, Black anodised finish, plastic vial

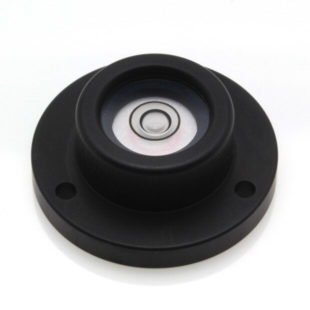

Product Drawing (pdf 92 kB) CP32B – Circular level, Ø32mm, Black anodised finish, plastic vial

Features

  • Black Anodised aluminium housing
  • High quality plastic vial
  • Sensitivity 34' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 31.75 mm
Sensitivity 34 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 4.8 mm
Ring Diameter 6.1 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 31.75 mm
Body Diameter 20 mm
Overall Height 12 mm
Flange Height 4 mm
Pitch Centre Diameter For Mounting Holes 26 mm
Hole Diameter 2.6 mm
Weight 11 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
