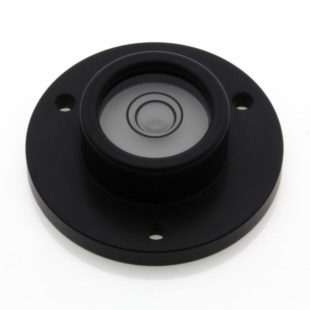

Circular Levels » Surface Mounted Circular Levels » CP35B - Circular Level Ø35mm, Black anodised finish, plastic vial.

Product Drawing (pdf 68 kB) CP35B – Circular Level Ø35mm, Black anodised finish, plastic vial.

Features

  • Black Anodised aluminium housing
  • High quality plastic vial
  • Sensitivity 40' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 35 mm
Sensitivity 40 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 5.8 mm
Ring Diameter 7.6 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 35 mm
Body Diameter 20 mm
Overall Height 11.5 mm
Flange Height 3.5 mm
Pitch Centre Diameter For Mounting Holes 28 mm
Hole Diameter 2.8 mm
Weight 10.7 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
