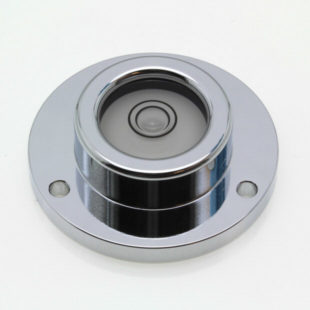

Circular Levels » Surface Mounted Circular Levels » CP40 - Circular level, Ø40mm, chrome finish, plastic vial

Product Drawing (pdf 72 kB) CP40 – Circular level, Ø40mm, chrome finish, plastic vial

Features

  • Chrome plated aluminium housing
  • High quality plastic vial
  • Sensitivity 30' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 40 mm
Sensitivity 30 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or free standing -
Bubble Size 5.8 mm
Ring Diameter 7.6 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 40 mm
Body Diameter 25 mm
Overall Height 12.5 mm
Flange Height 4 mm
Pitch Centre Diameter For Mounting Holes 34 mm
Hole Diameter 3.1 mm
Weight 17 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
