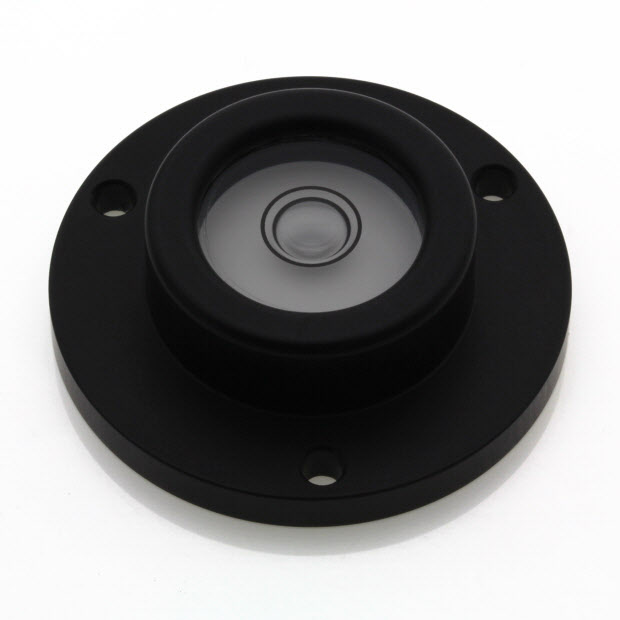

Product Drawing (pdf 72 KB) CP40B – Circular level, Ø40mm, Black anodised finish, plastic vial
Features
- Black Anodised aluminium housing
- High quality plastic vial
- Sensitivity 30' per 2mm bubble movemement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 40 | mm |
Sensitivity | 30 | minutes per 2 mm |
Vial Material | Acrylic (PMMA) | - |
Case Material | Aluminium | - |
Finish | Chrome Plated | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 5.8 | mm |
Ring Diameter | 7.6 | mm |
Ring Colour | Black | - |
Liquid Colour | Clear | - |
Light | none | - |

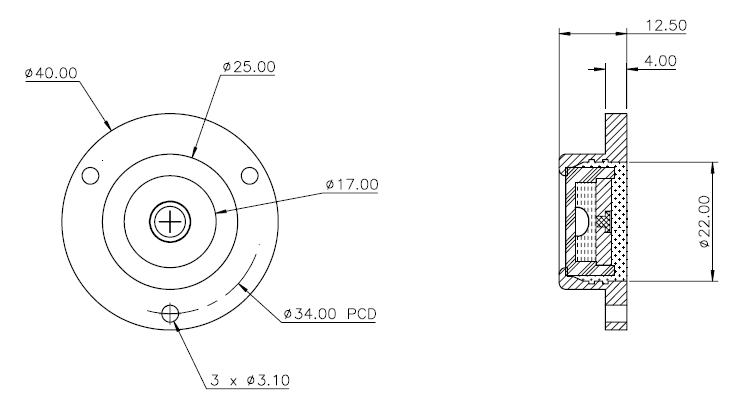

Dimension | Value | Unit |
---|---|---|
Overall Diameter | 40 | mm |
Body Diameter | 25 | mm |
Overall Height | 12.5 | mm |
Flange Height | 4 | mm |
Pitch Centre Diameter For Mounting Holes | 34 | mm |
Hole Diameter | 3.1 | mm |
Weight | 17 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 60 | °C |
Storage Temperature Range | -25 to 65 | °C |
