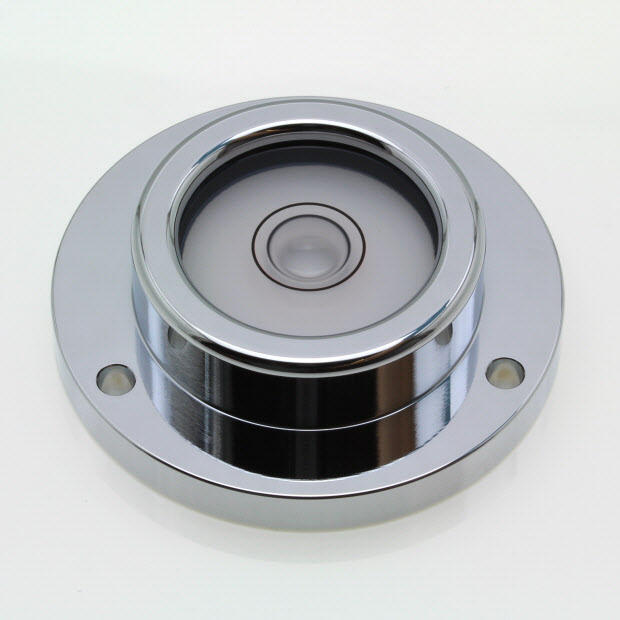

Circular Levels » Surface Mounted Circular Levels » CP50 - Circular level, Ø50mm, chrome finish, plastic vial

Product Drawing (pdf 84 kB) CP50 – Circular level, Ø50mm, chrome finish, plastic vial

Features

  • Chrome plated aluminium housing
  • High quality plastic vial
  • Sensitivity 37' per 2mm bubble movemement
  • High contrast bubble
  • Wide temperature range

Applications

  • Precision Instrument Levelling
  • High precision weighing scales
  • Robotic systems levelling

Product Specification

Parameter Value Unit
Diameter 50 mm
Sensitivity 37 minutes per 2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Chrome Plated -
Mounting Method Screw down or free standing -
Bubble Size 7.2 mm
Ring Diameter 9 mm
Ring Colour Black -
Liquid Colour Clear -
Light none -

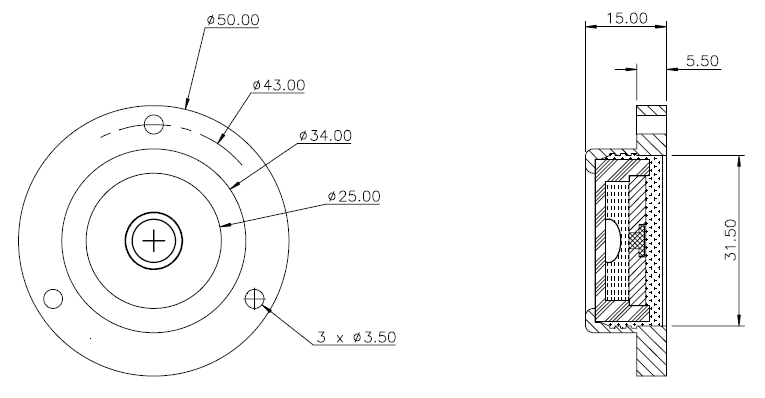

Dimension Value Unit
Overall Diameter 50 mm
Body Diameter 34 mm
Overall Height 15 mm
Flange Height 5.5 mm
Pitch Centre Diameter For Mounting Holes 43 mm
Hole Diameter 3.5 mm
Weight 33.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -25 to 65 °C
