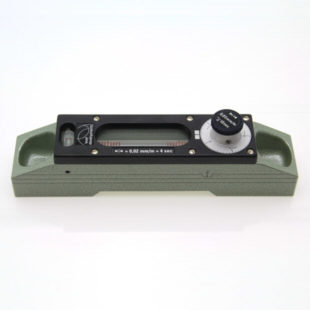

65-0.01-300 – Precison Micrometer Level, 300mm long, sens. 0.01mm/m

Features

  • Adjustable precision ground glass vials
  • Stabilised and hardened cast iron base.

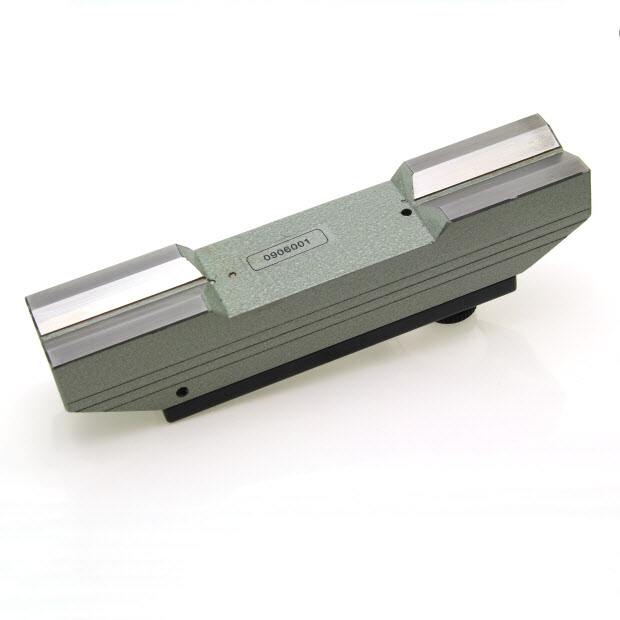

  • Precision ground flat and 'V' bearing surfaces
  • Micrometer adjustment, 1 division = 0.05mm/m.
  • Micrometer range : ±10mm/m
  • Vial sensitivity: 1 division = 0.01mm/m.
  • Optimum vial quality and bubble size gives fast settling
  • Stable over a wide temperature range and highly resistant to shock
  • Magnetic base version available on request
  • Certification can be supplied to BS958 and DIN877

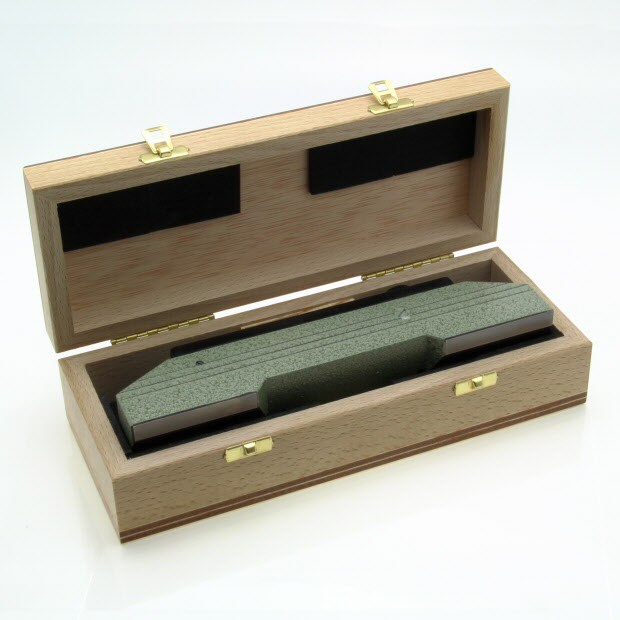

  • Protective wooden box with adjustment key
  • Repair and re-calibration service available.

Product Specification

Parameter Value Unit
Length 300 mm
Height 45 mm
Width 40 mm
Sensitivity Per Division mm/m
Range 10mm/m -
Resolution 0.01mm/m -
Accuracy 0.05mm/m -
Cross Vial Yes -
Base Style Flat and V -
Magnetic No -
Dimension Value Unit
Length 300 mm
Width 40 mm
Height 45 mm
Weight 2.7 Kilograms
Parameter Value Unit
Operational Temperature Range 0 to 40 °C
Storage Temperature Range -20 to 65 °C
