Engineers Level » Frame Levels » 132101 - Frame level 100mm square, sensitivity 0.4mm/m

Calibration Instructions (pdf 39 KB) 132101 – Frame level 100mm square, sensitivity 0.4mm/m

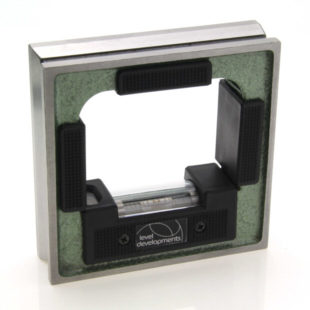

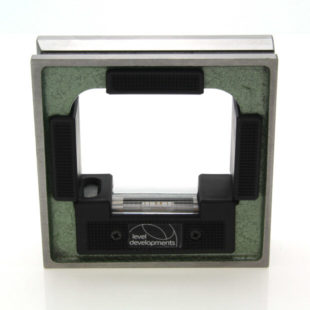

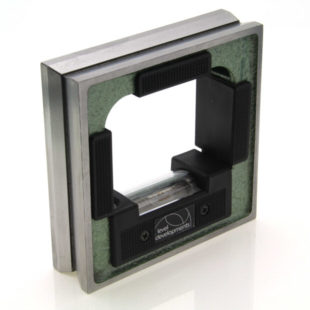

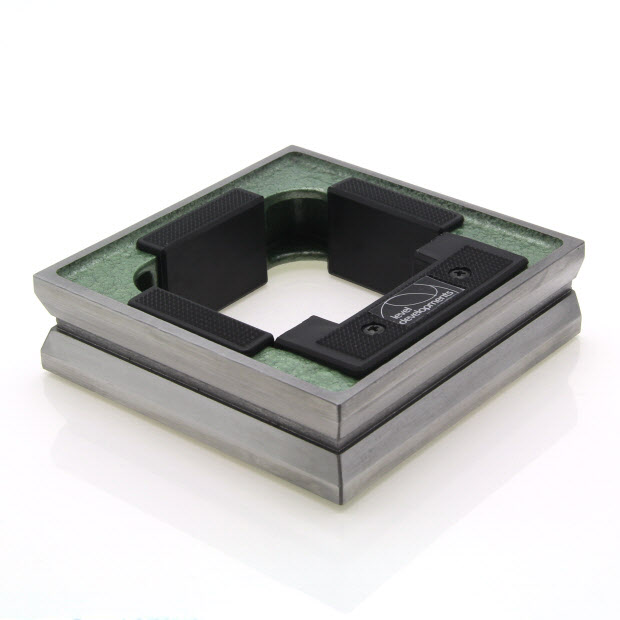

Precision engineers frame levels for high accuracy levelling of horizontal and vertical surfaces and cylinders. Adjustable precision ground glass vials (main and cross vial) with a stabilised and hardened cast iron frame with precision ground flat and ‘V’ bearing surfaces.

Features

  • Small size for tight spaces, 100mm square.
  • Sensitivity 1 division = 0.4mm/m
  • Optimum vial quality / bubble size gives fast settling time.
  • Stable over a wide temp. range and resistant to shock
  • Plastic insulating handles for carrying by hand
  • Calibration certificates available to BS958 and DIN877

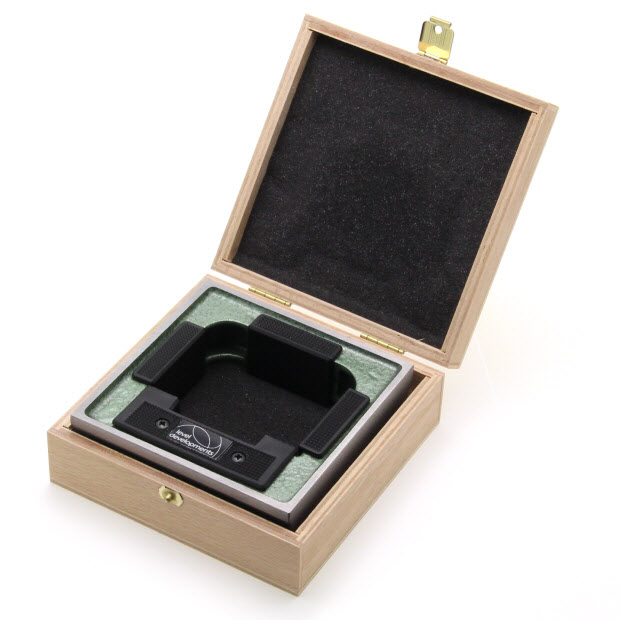

  • Supplied in a protective wooden box with adjustment key

Applications

  • Machine tool / Work piece / Printing machine levelling

Product Specification

Parameter Value Unit
Length 100 mm
Height 100 mm
Width 30 mm
Sensitivity Per Division 0.4 mm/m
Cross Vial Yes -
Base Style Flat and V -
Magnetic No -
Dimension Value Unit
Length 100 mm
Width 30 mm
Height 100 mm
Weight 0.661 Kilograms
Parameter Value Unit
Operational Temperature Range 0 to 40 °C
Storage Temperature Range -20 to 70 °C
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate
